• Suspension Package, Standard includes 51mm twin tube shock absorbers and 33mm front stabilizer bar
• Pickup box
• Air cleaner, high-capacity

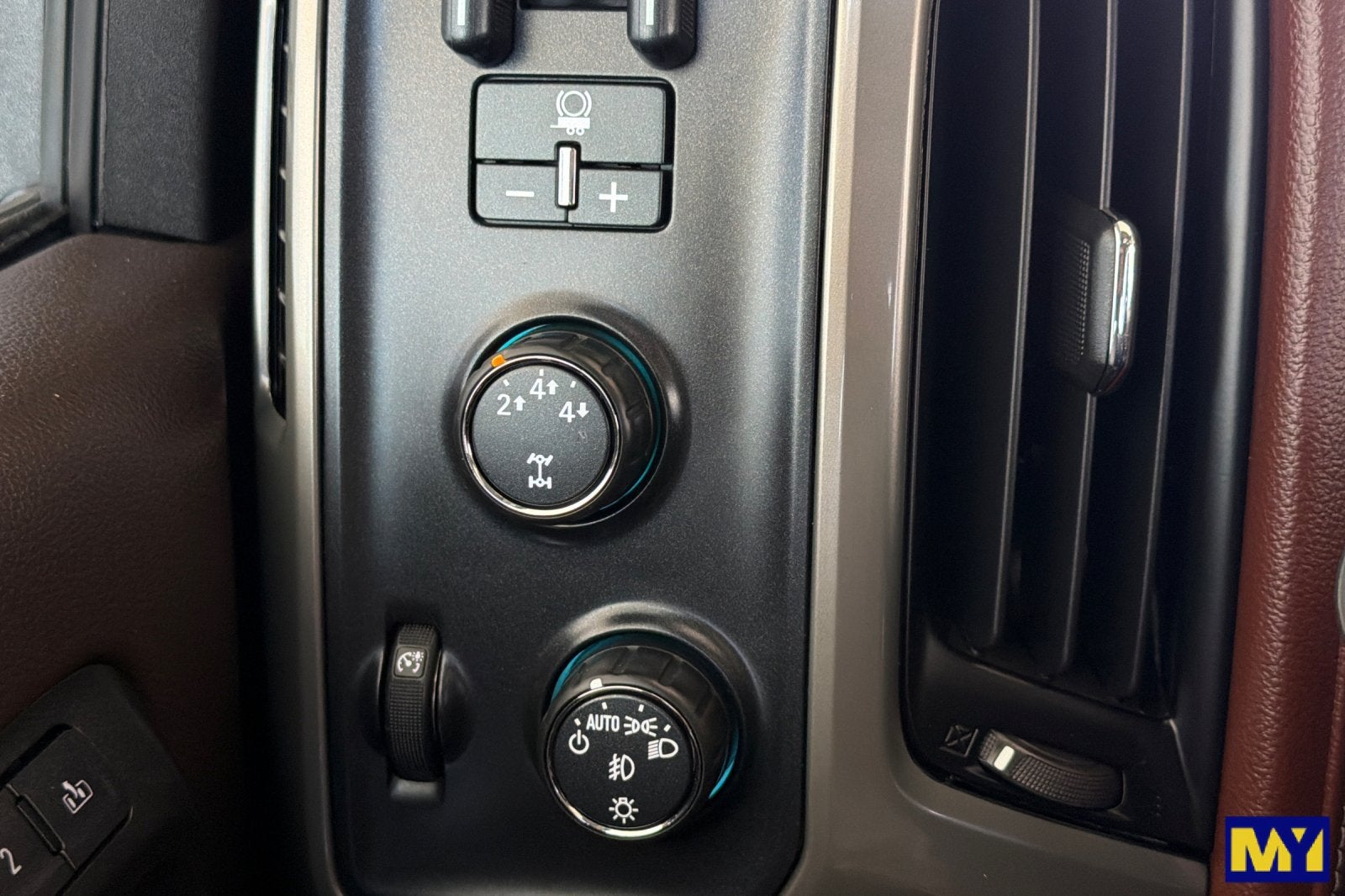

• Transfer case, electronic shift with rotary dial controls (Requires 4WD models.)
• Differential, heavy-duty locking rear
• Four wheel drive
• Trailering equipment Trailering hitch platform 2.5" with a 2.0" insert for HD, 7-wire harness with independent fused trailering circuits mated to a 7-way sealed connector to hook up parking lamps, backup lamps, right and left turn signals, an electric brake lead, battery and a ground, The trailer connector also includes the 4-way for use on trailers without brakes - park, brake/turn lamps
• Battery, heavy-duty 720 cold-cranking amps/80 Amp-hr maintenance-free with rundown protection and retained accessory power
• Alternator, 150 amps
• Trailer brake controller, integrated
• Recovery hooks, front, frame-mounted, black
• Frame, fully-boxed, hydroformed front section
• Chassis, single rear wheel
• Steering, Recirculating ball with smart flow power steering system
• Brakes, 4-wheel antilock, 4-wheel disc with DuraLife brake rotors (Requires single rear wheels.)
• Exhaust, aluminized stainless-steel muffler and tailpipe

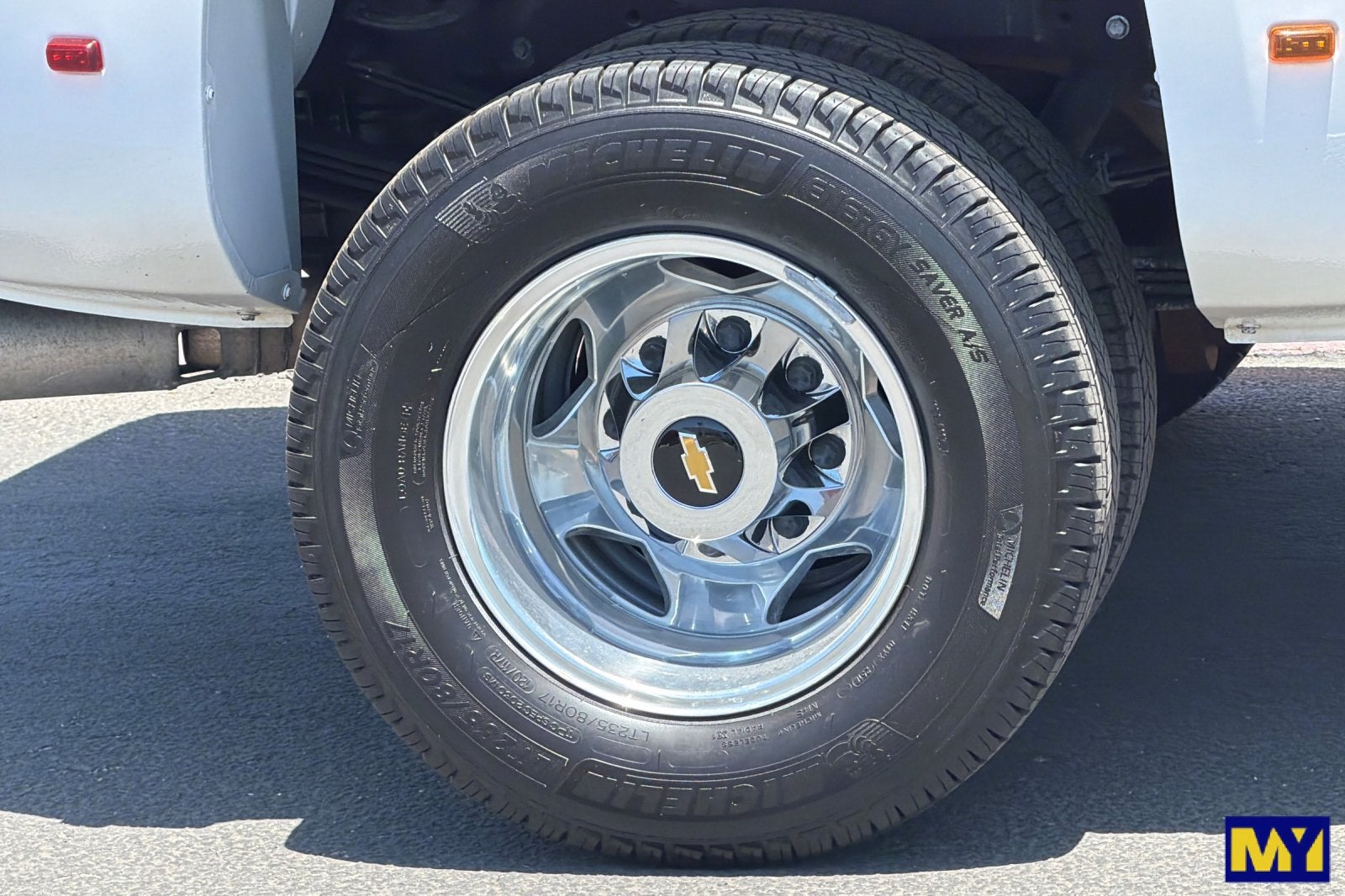

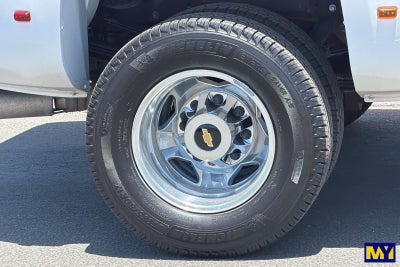

• Wheels, 18" (45.7 cm) chromed aluminum includes 18" x 8" (45.7 cm x 20.3 cm) steel spare wheel. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered. (Requires single rear wheels.)
• Tires, LT265/70R18E all-season, blackwall (Requires single rear wheels.)
• Wheel, 18" x 8" (45.7 cm x 20.3 cm) full-size, steel spare Spare not included with (ZW9) pickup box delete unless a spare tire is ordered. (Requires single rear wheels. Included with (E63) pickup box. Available to order when (ZW9) pick-up box delete is ordered.)
• Wheelhouse liners, rear (Requires Crew Cab or Double Cab model. Not available with dual rear wheels. Deleted with (ZW9) pickup box delete.)
• Tire carrier lock keyed cylinder lock that utilizes same key as ignition and door (Not included when (ZW9) pickup box delete or (9J4) rear bumper delete is ordered.)
• Bumper, front, body-color
• Bumper, rear, body-color
• CornerStep, rear bumper
• LPO, Assist Steps - 6" Chromed Rectangular (dealer-installed) (May be substituted with (VXJ) or (RVS) assist steps, LPO. (VXH) is deleted when (VXJ) or (RVS) assist steps, LPO are specified when (CHX) 13,025 lbs. GVWR with dual rear wheels is ordered and requires (R8M) VXH factory installed 6" chrome tubular rectangular assist step delete.)
• Moldings, bodyside, chrome

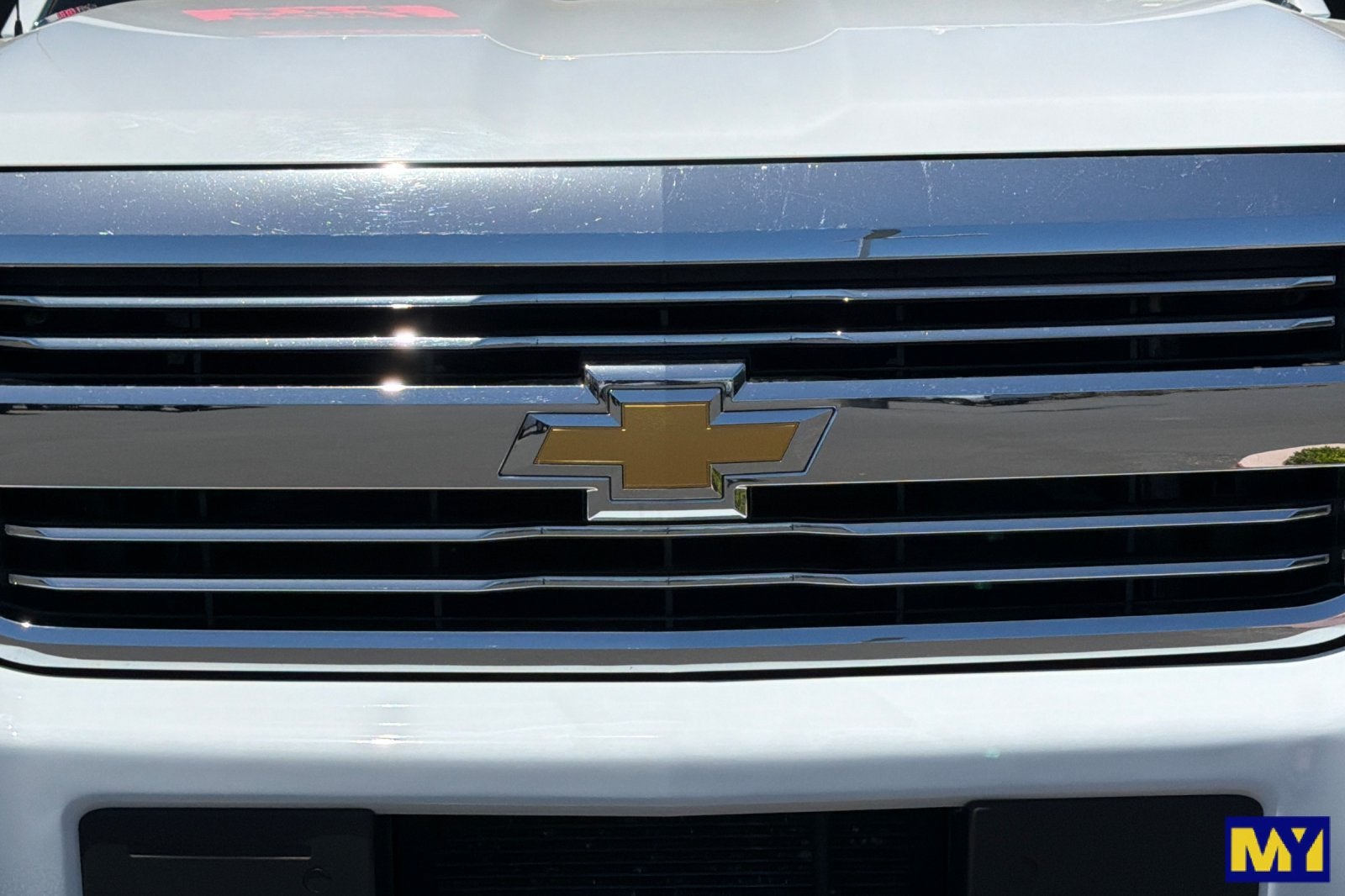

• Grille surround, chrome
• Headlamps, halogen projector-beam
• Fog lamps, front, halogen
• Lamps, cargo area, cab mounted with switch on center switch bank
• Mirrors, outside heated power-adjustable vertical trailering, memory-equipped, upper glass, power-folding and manual extending, chrome; includes integrated turn signal indicators, consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp
• Glass, deep-tinted
• Window, power, rear sliding with rear defogger on Crew Cab or Double Cab models
• Door handles, chrome
• Tailgate and bed rail protection caps, top
• Tailgate, EZ-Lift and Lower (Deleted when (ZW9) pickup box delete is ordered.)
• Remote Locking Tailgate
• Bed Liner, Spray-on Pickup box bed liner with bowtie logo. Liner is permanently bonded to the truck bed providing a water tight seal. The textured, non-skid surface is black in color and robotically applied. Spray-on liner covers entire bed interior surface below side rails, including tailgate, front box top rail, gage hole plugs and lower tie down loops.
• Cargo ties downs (4), movable upper

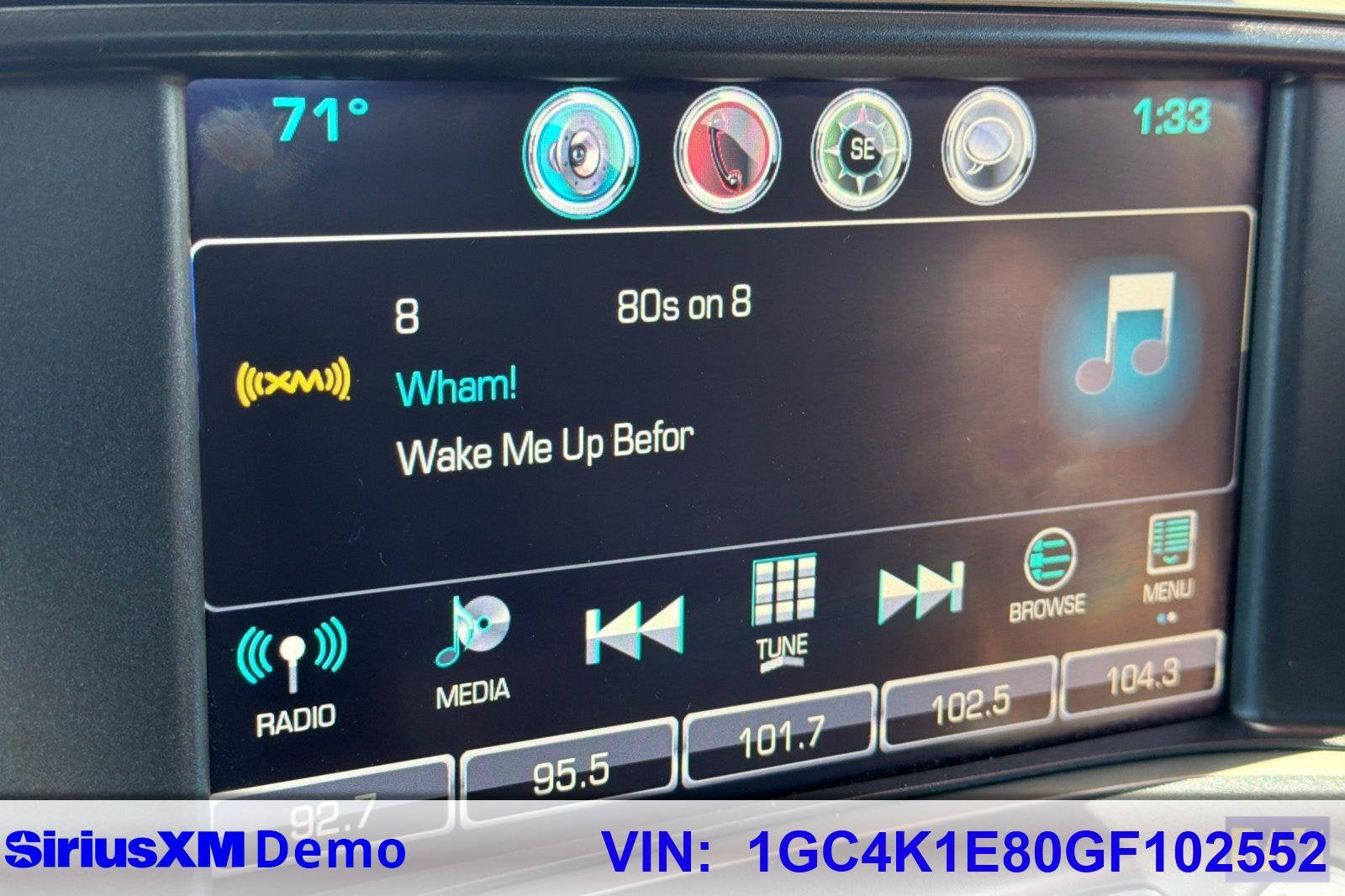

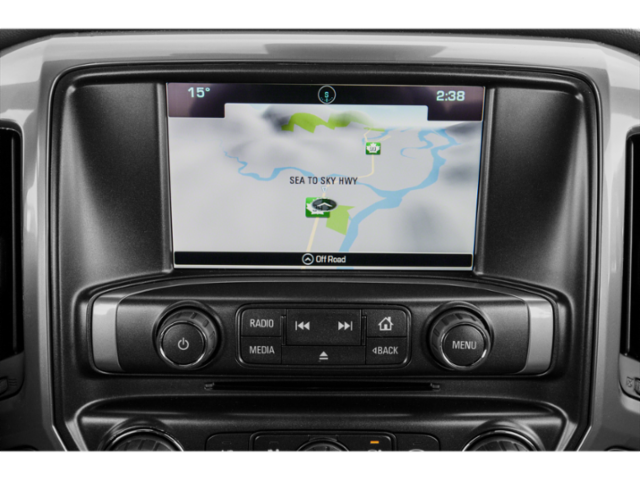

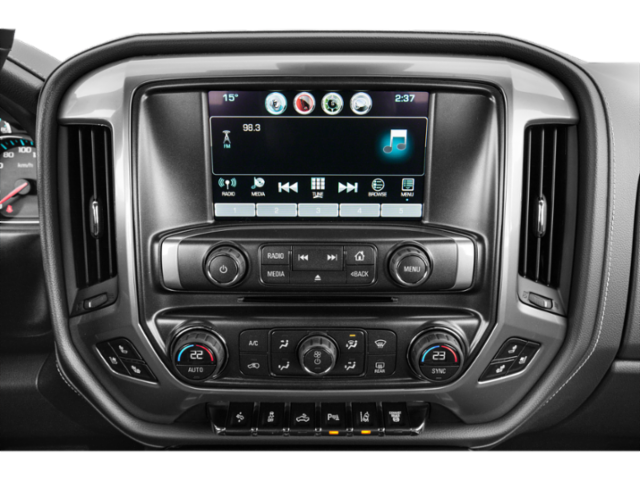

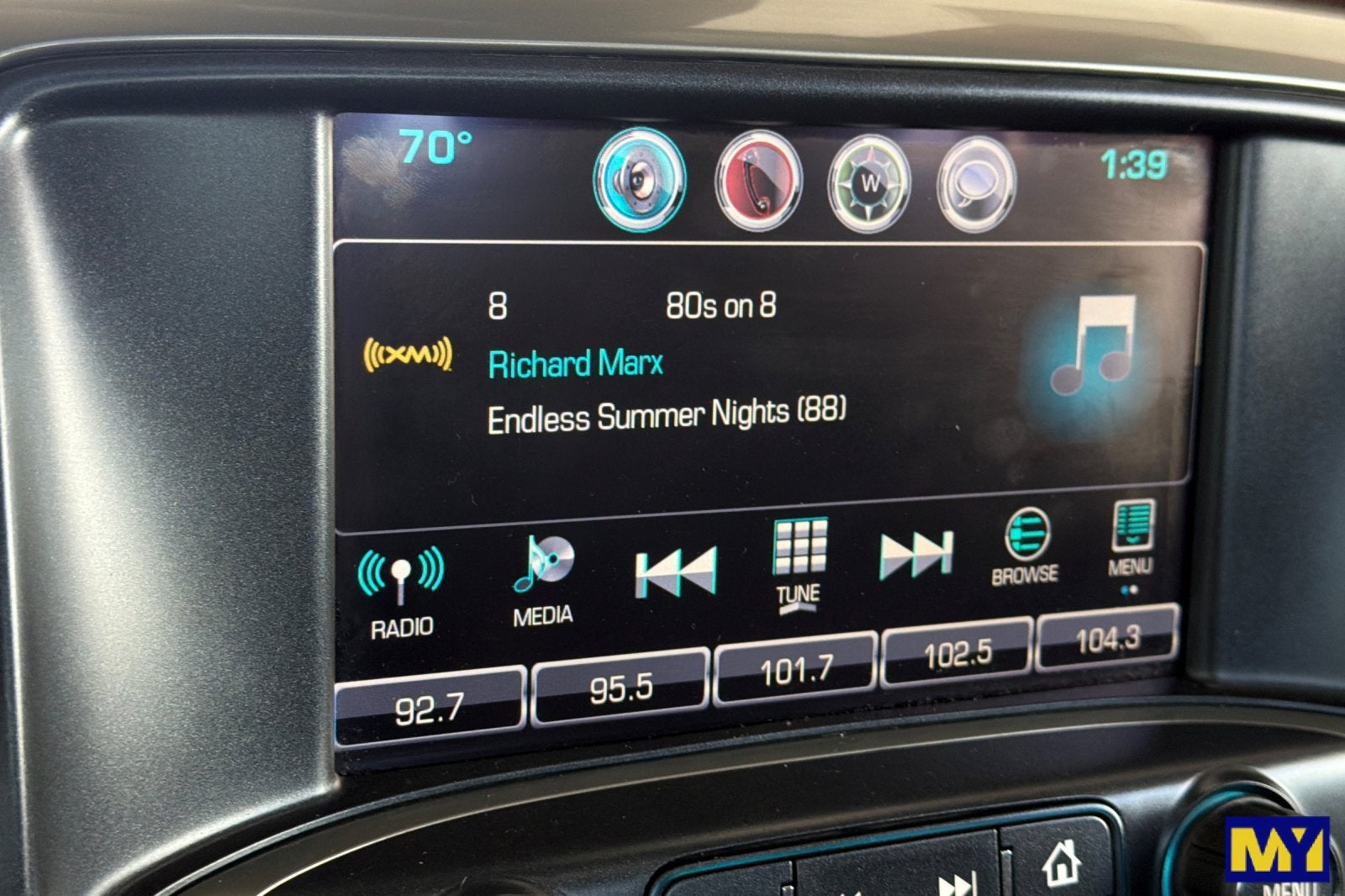

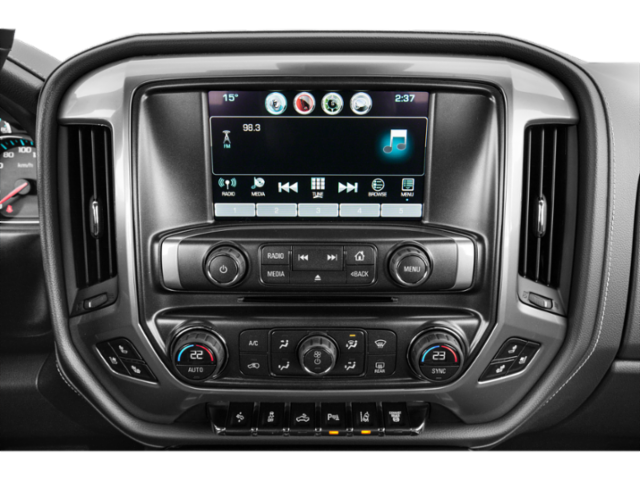

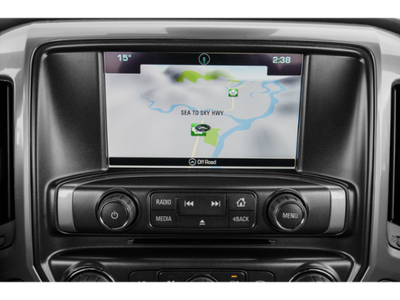

• Audio system, Chevrolet MyLink Radio with Navigation and 8" diagonal color touch-screen, AM/FM stereo with seek-and-scan and digital clock, includes Bluetooth® streaming audio for music and select phones; USB ports; auxiliary jack; voice-activated technology for radio and phone; featuring Apple CarPlay capability for compatible phone.
• Single-slot CD/MP3 player (On Crew Cab model replaced by (U42) rear seat DVD/Blu-Ray Entertainment Package when (U42) is ordered.)
• OnStar with 4G LTE and built-in Wi-Fi hotspot to connect to the internet at 4G LTE speeds includes 3GB or 3 months OnStar Data Trial (whichever comes first) (Available 4G LTE Wi-Fi requires compatible mobile device, active OnStar subscription and data plan after trial.)
• SiriusXM Satellite Radio is standard on nearly all 2016 GM models. Enjoy a 3-month All Access trial subscription with over 150 channels including commercial-free music, plus sports, news and entertainment. Plus listening on the app and online is included, so you'll hear the best SiriusXM has to offer, anywhere life takes you. Welcome to the world of SiriusXM. (IMPORTANT: The SiriusXM Satellite Radio trial package is not provided on vehicles that are ordered for Fleet Daily Rental ("FDR") use. If you decide to continue service after your trial, the subscription plan you choose will automatically renew thereafter and you will be charged according to your chosen payment method at then-current rates. Fees and taxes apply. To cancel you must call us at 1-866-635-2349. See our Customer Agreement for complete terms at www.siriusxm.com. All fees and programming subject to change.)
• Radio, HD

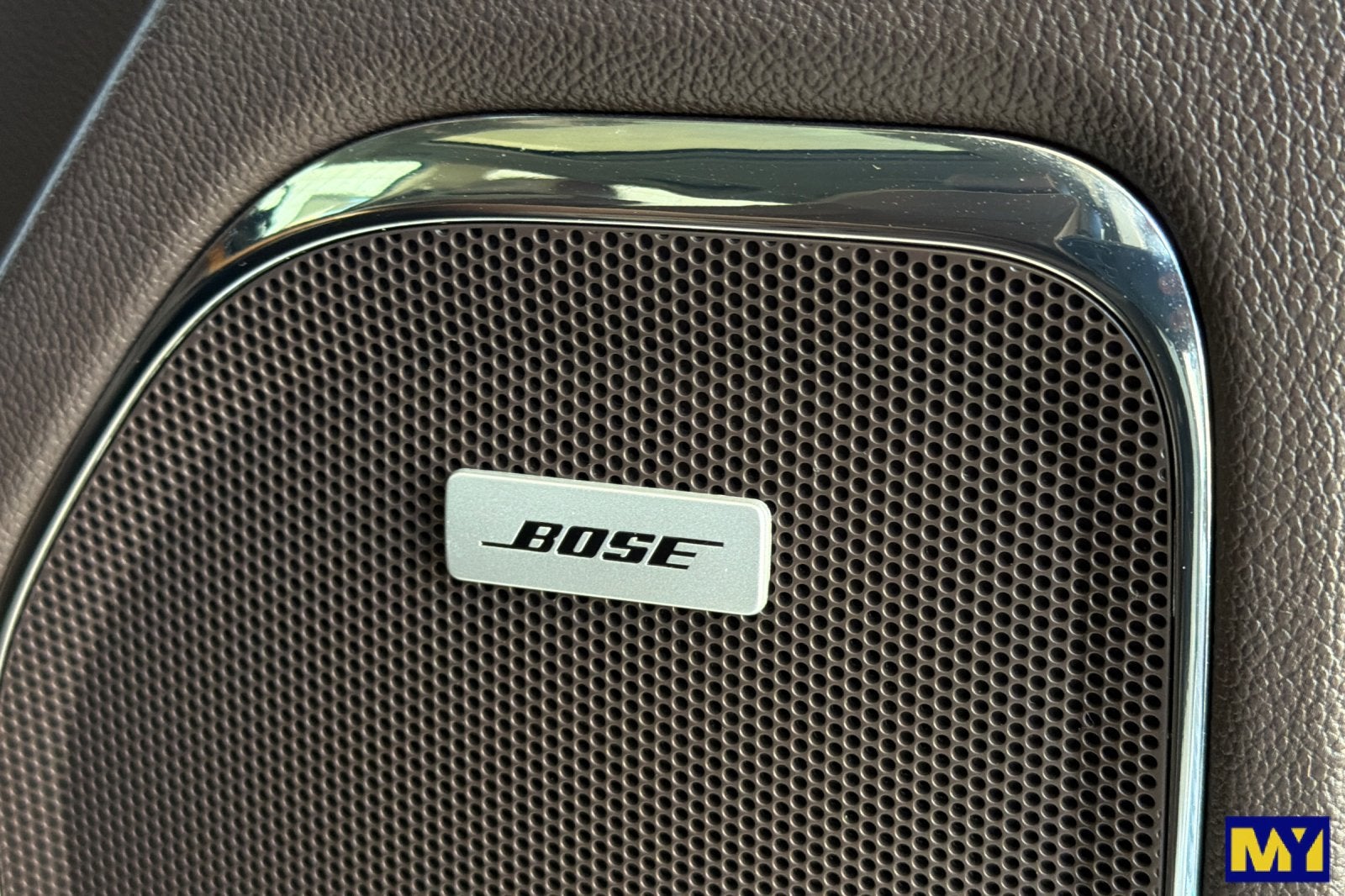

• Bose Sound with 6 speaker system (7 speaker system including subwoofer when ordered with bucket seats).
• Bluetooth® for phone personal cell phone connectivity to vehicle audio system
• Wireless Charging

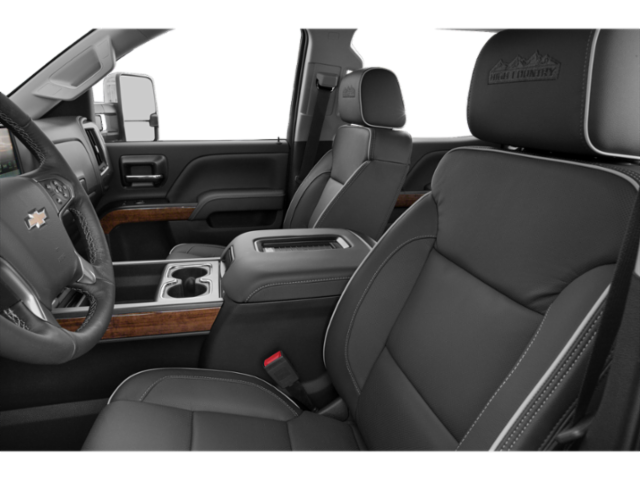

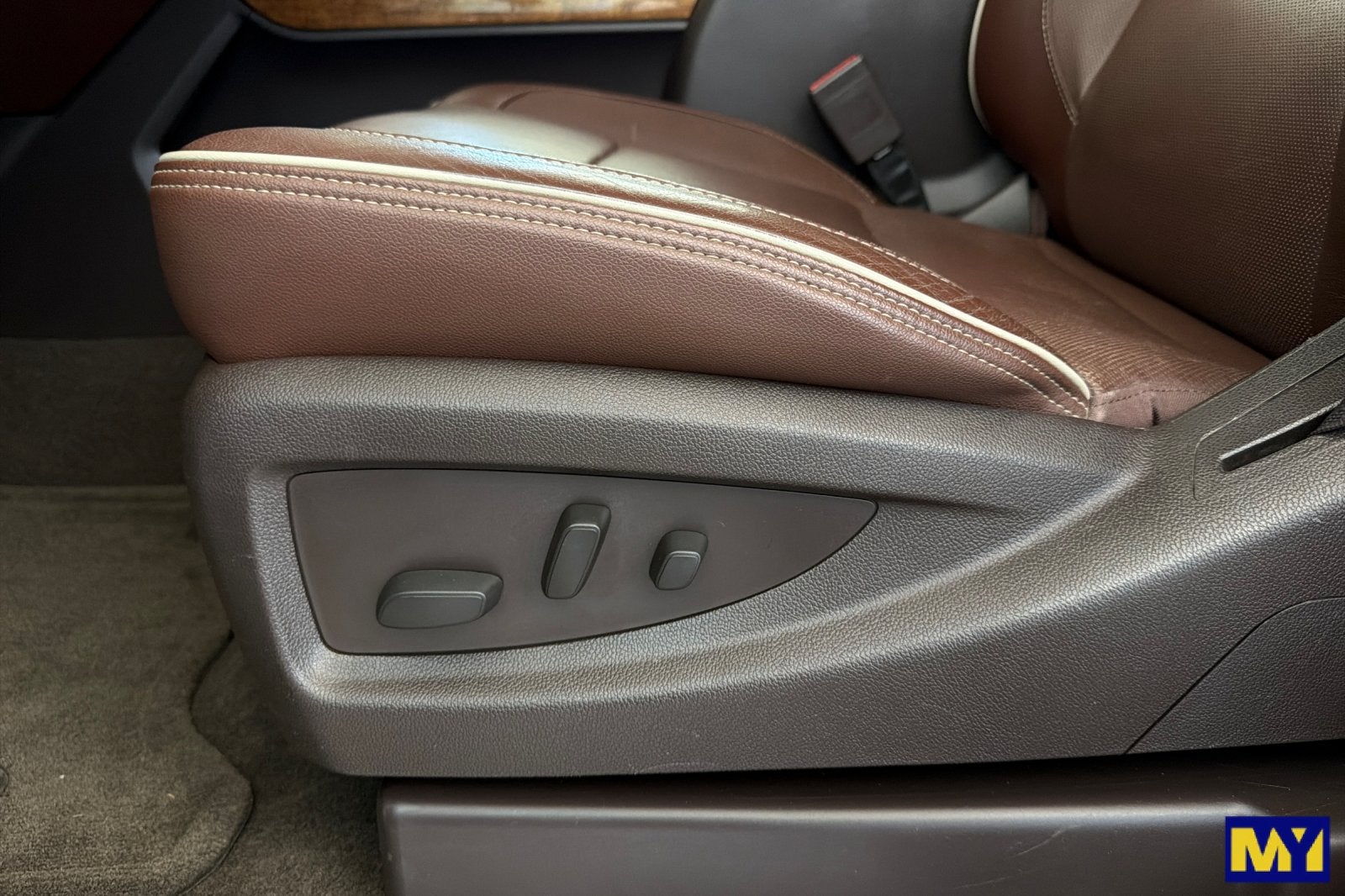

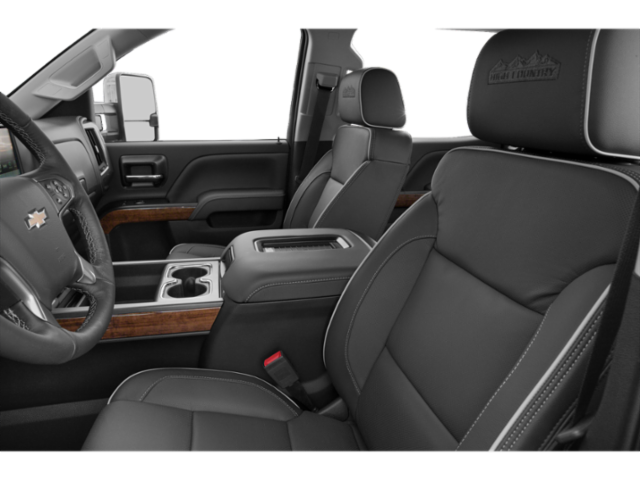

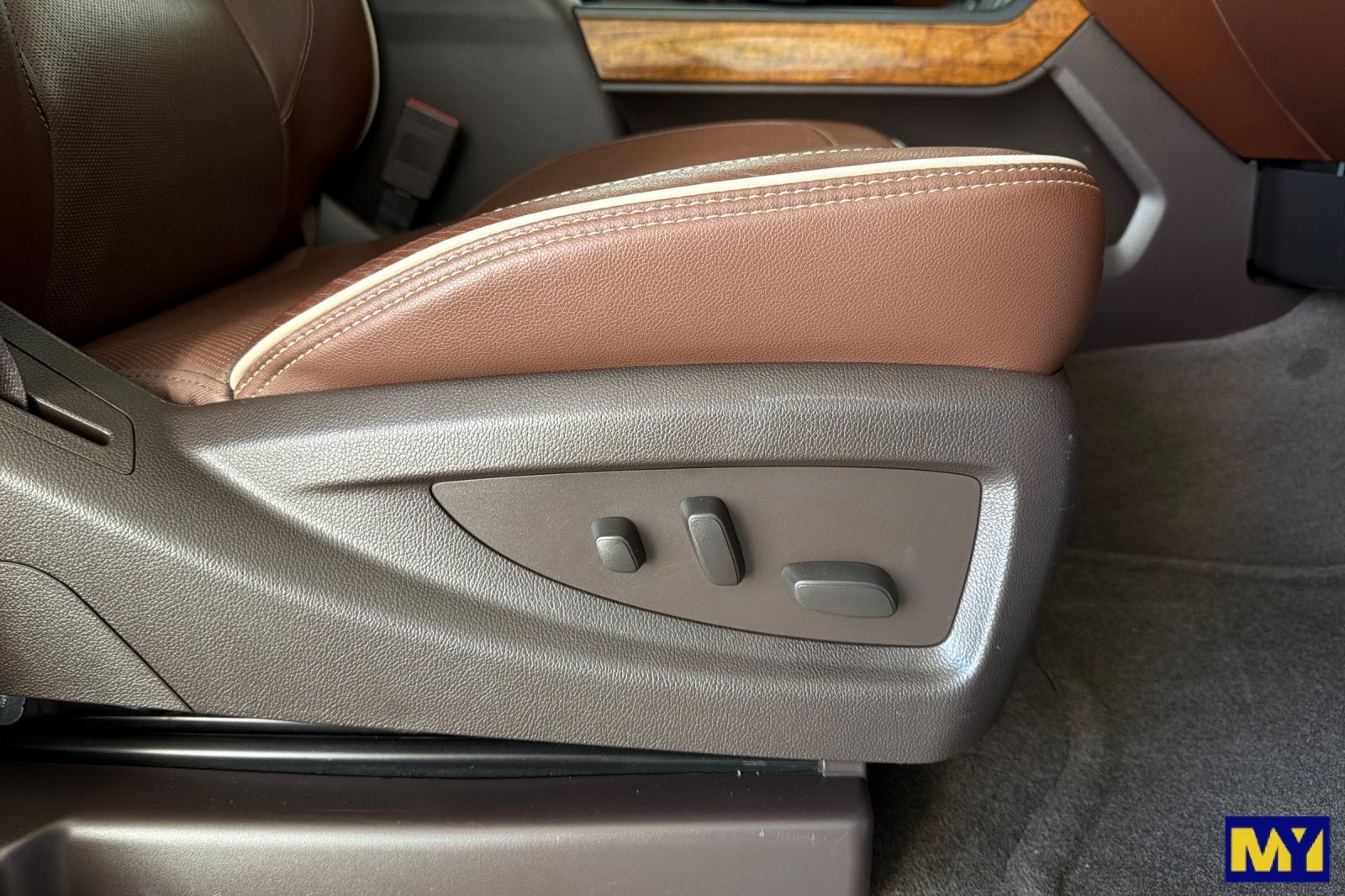

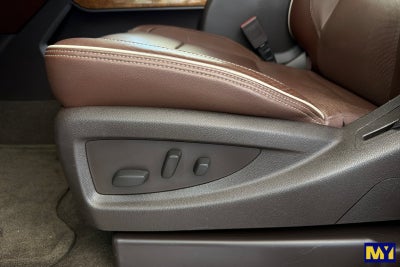

• Seats, front full-feature leather-appointed bucket. Includes 12-way power driver and front passenger seat adjuster including 4-way power lumbar, 2-position driver memory, adjustable head restraints, (D07) floor console storage pockets and (K4C) wireless charging.
• Seat trim, Perforated leather-appointed front seats
• Seating, heated and vented perforated leather-appointed front bucket (Requires (AN3) front full-feature leather-appointed bucket seats and (H3A), (H3B) or (H3C) perforated leather-appointed seat trims.)

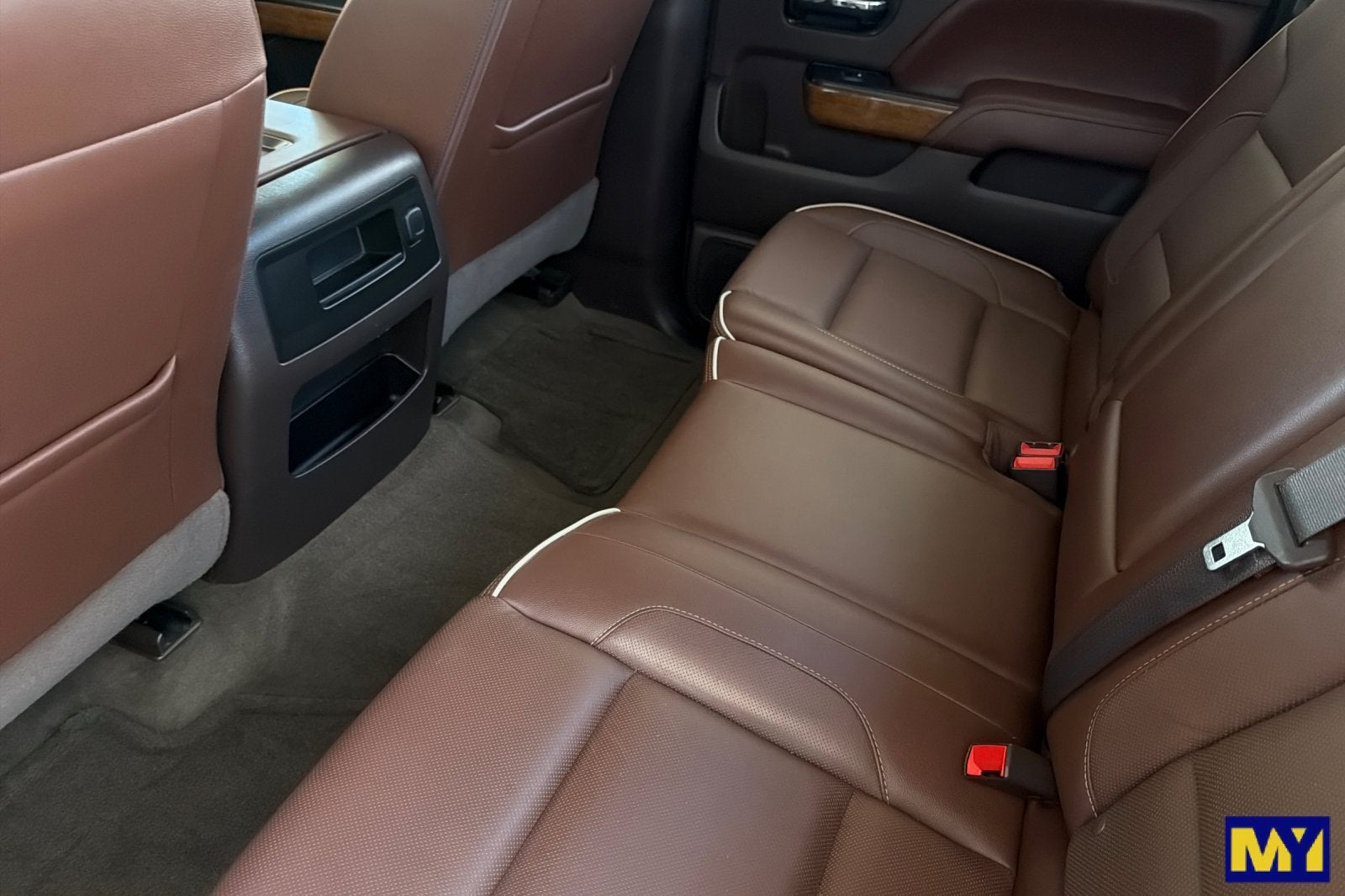

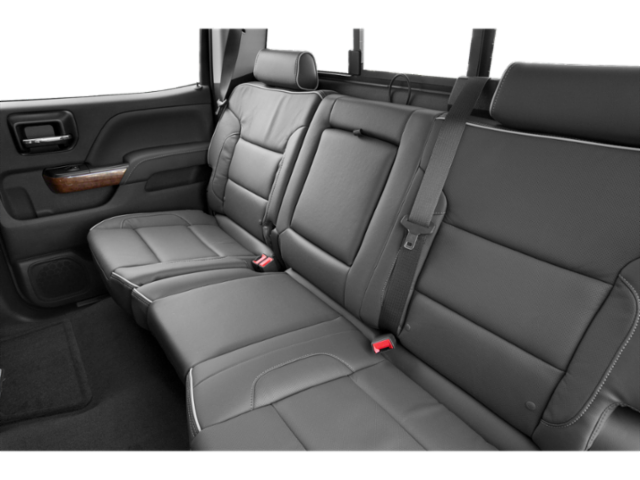

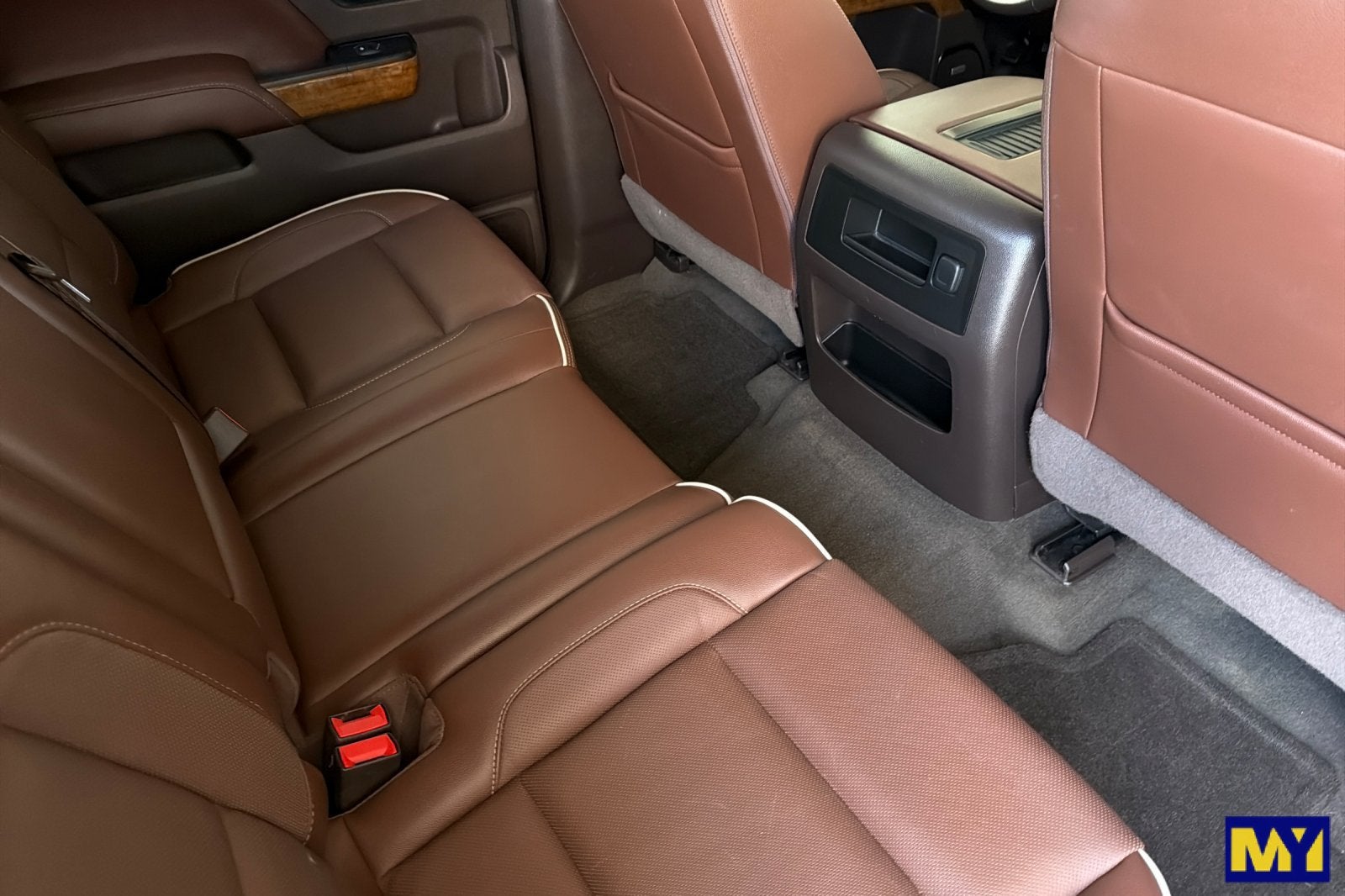

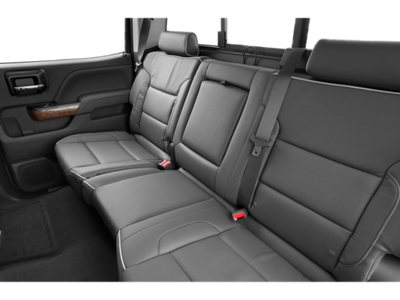

• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor)

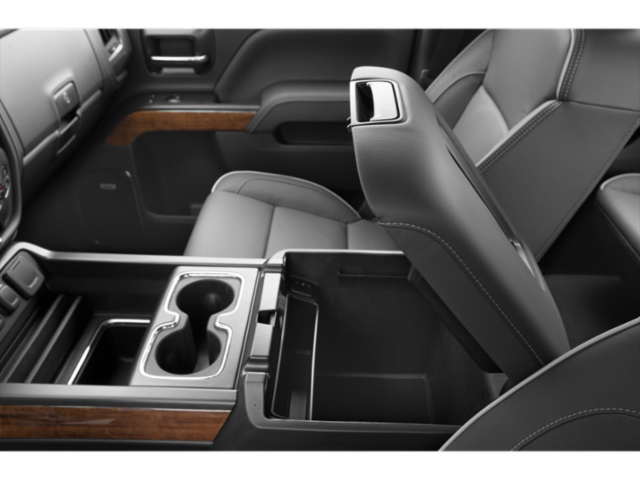

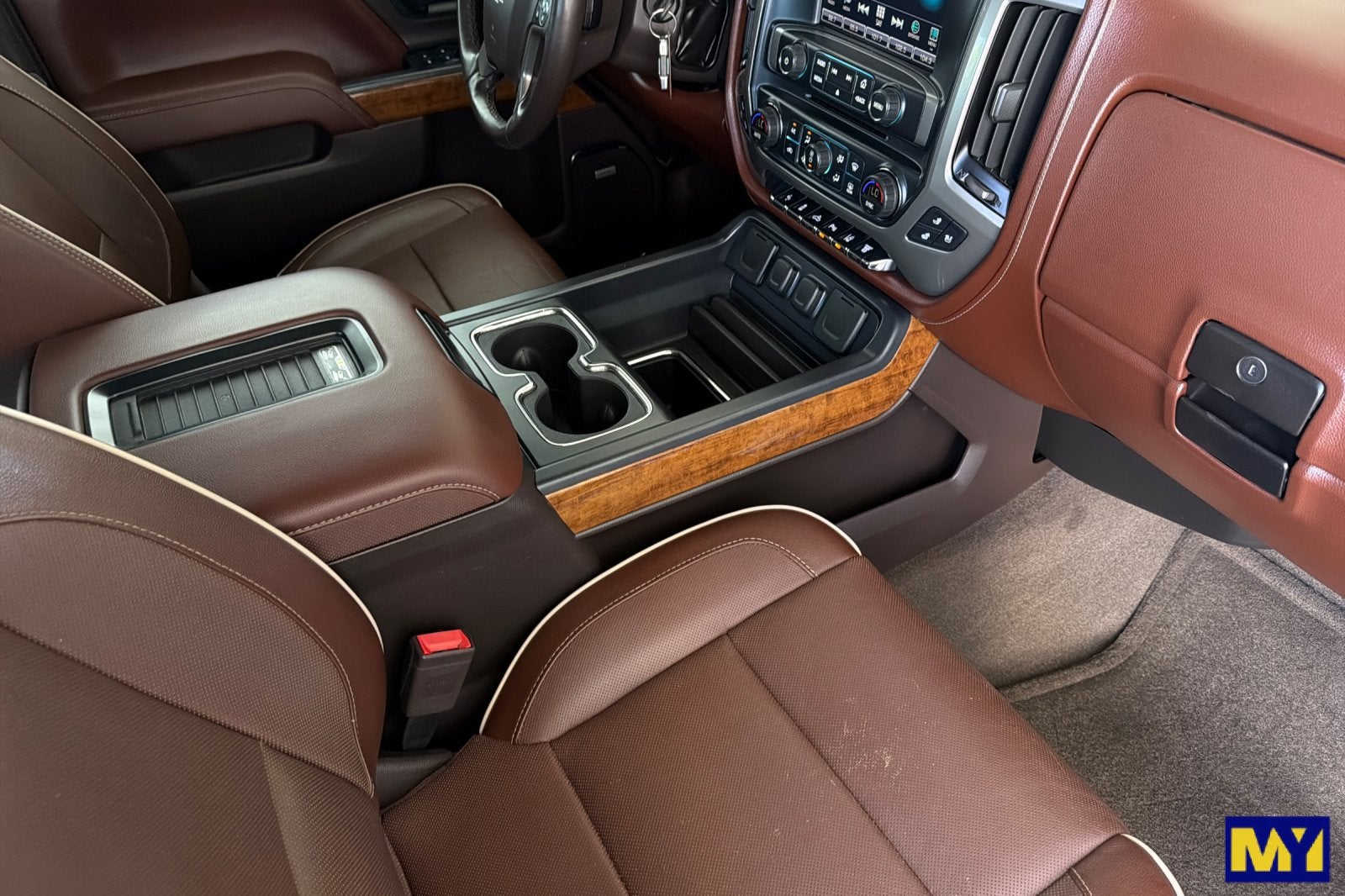

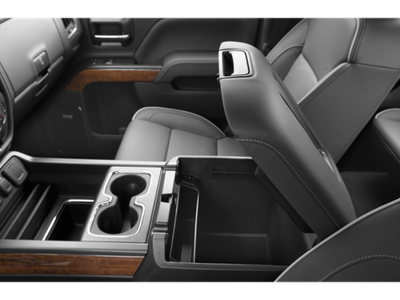

• Console, floor mounted, reconfigurable with cup holders, cell phone storage, power cord management, hanging file holder capability and (K4C) wireless charging
• Floor covering, color-keyed carpeting with rubberized vinyl floor mats (Double Cab and Crew Cabs include second row floor mats)
• Floor mats, carpeted front and rear
• Sill plates, bright

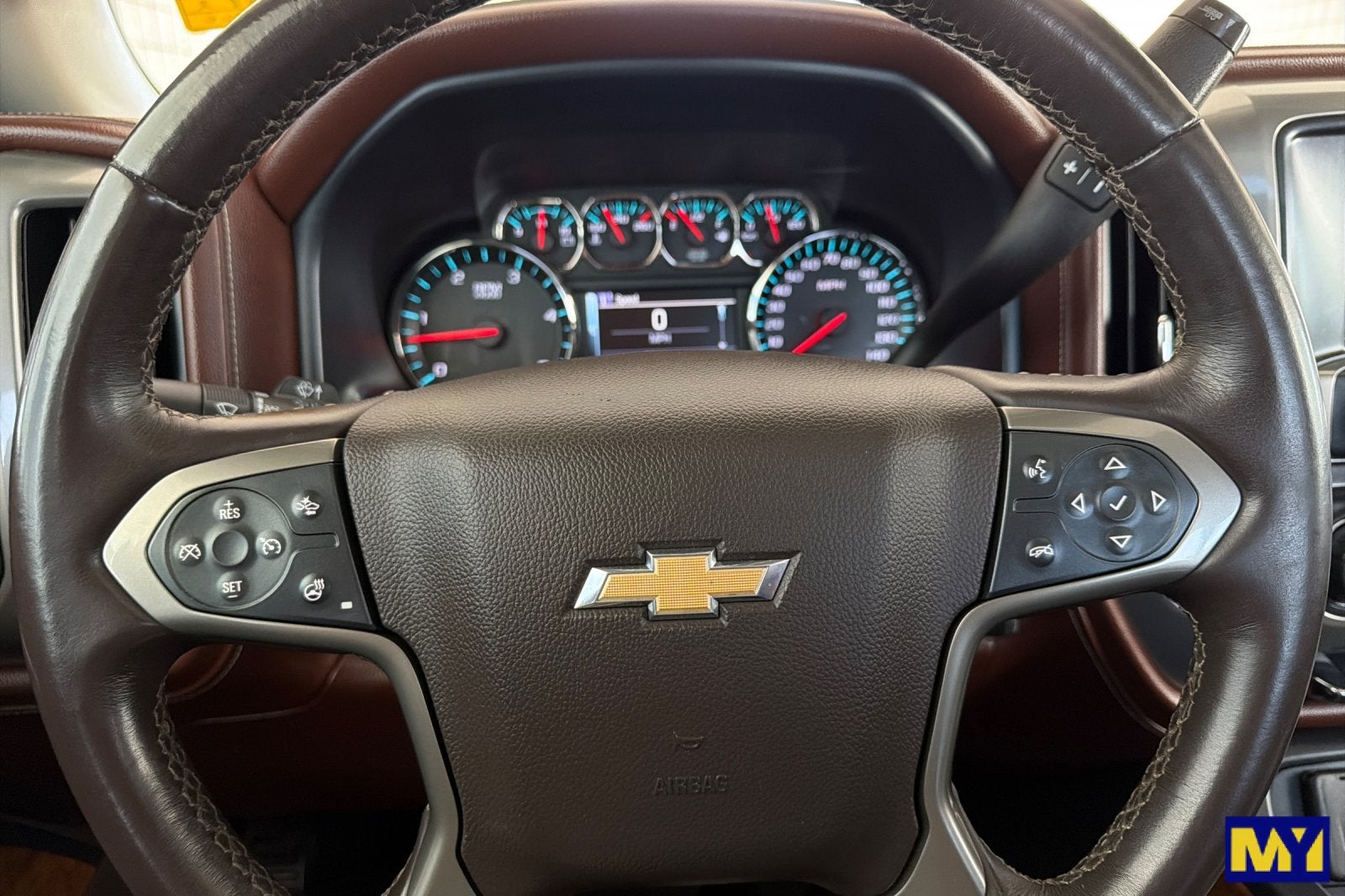

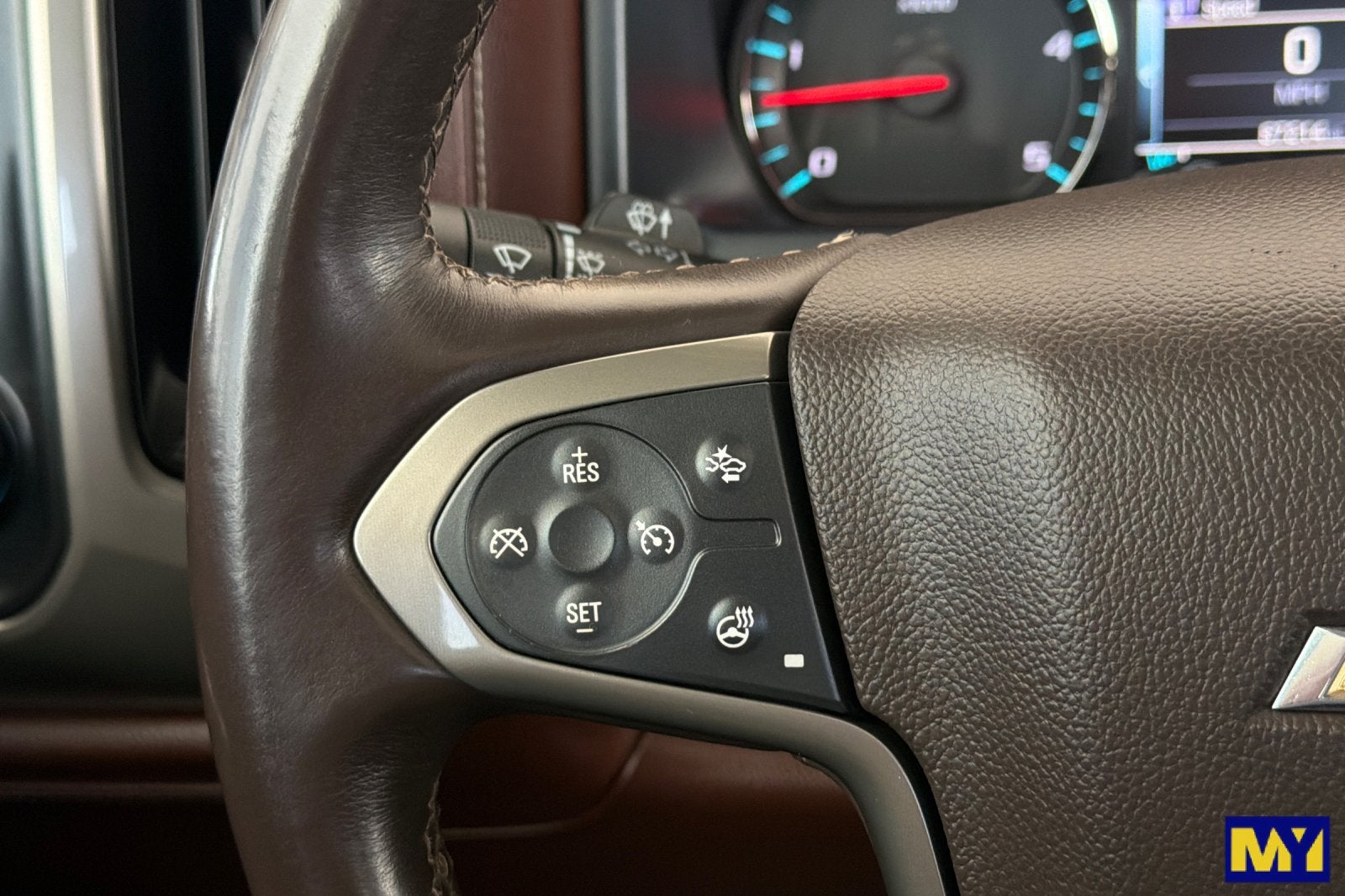

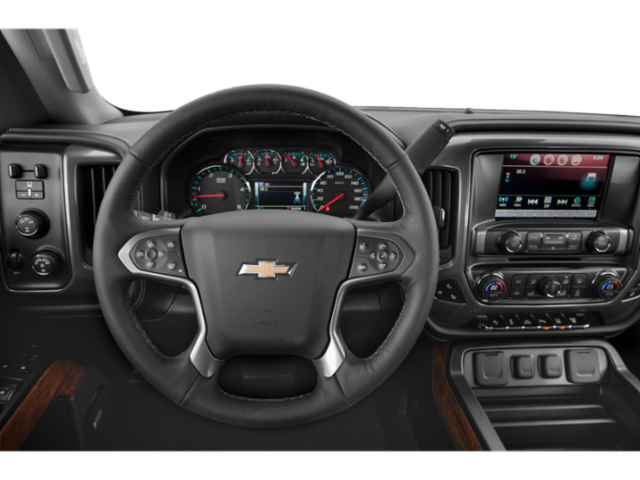

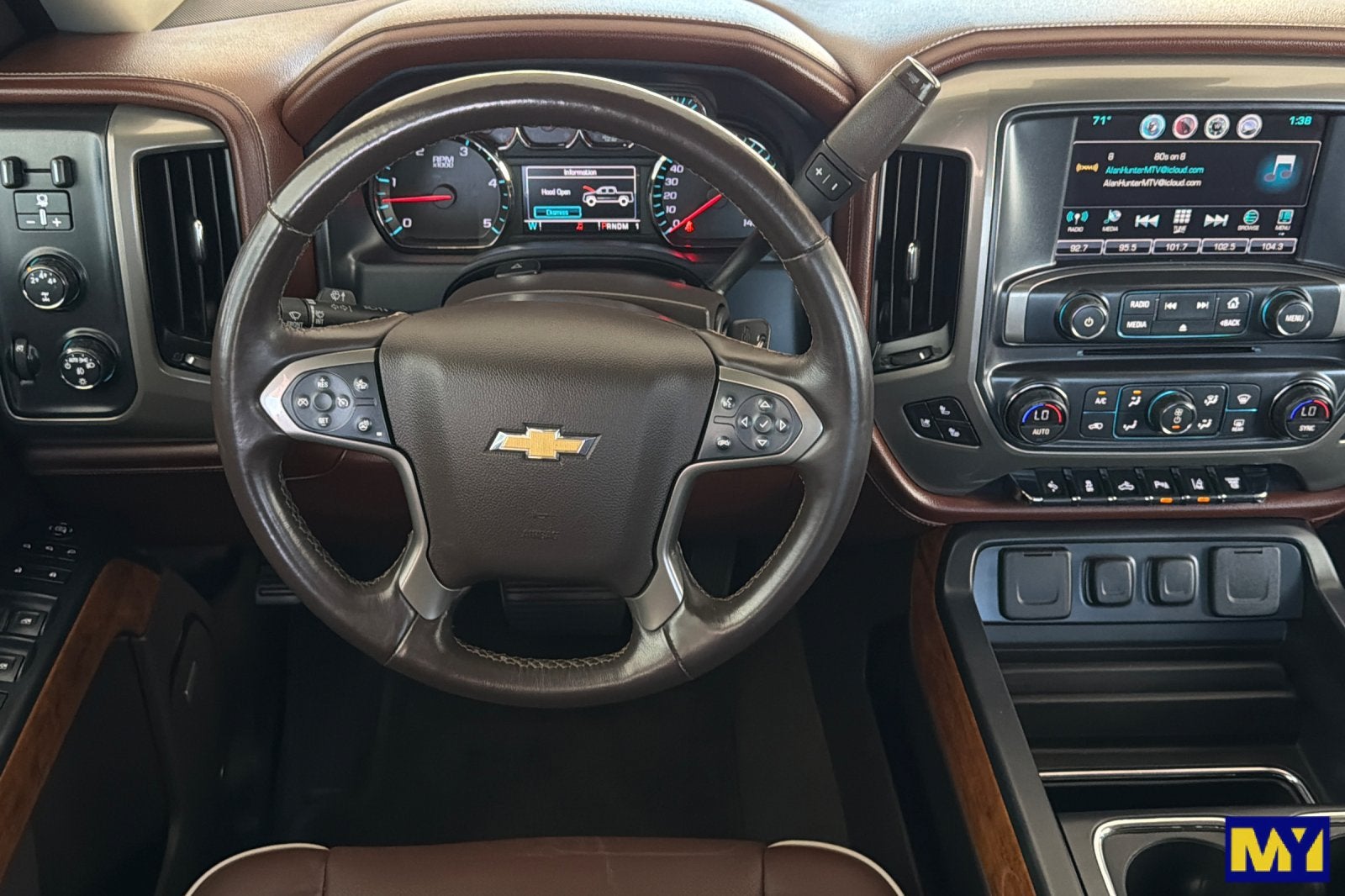

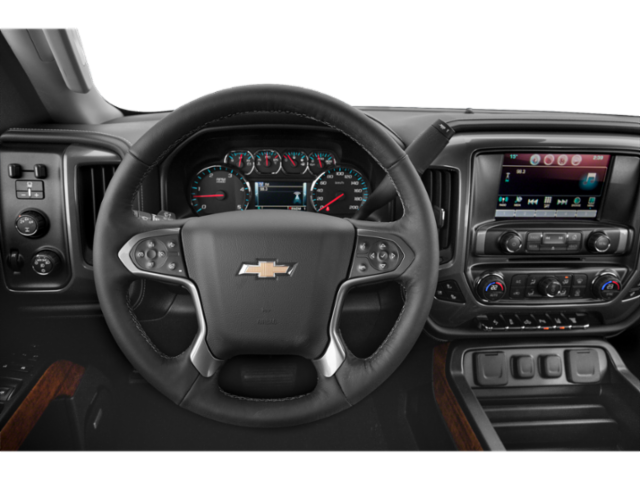

• Steering wheel, leather-wrapped with audio and cruise controls

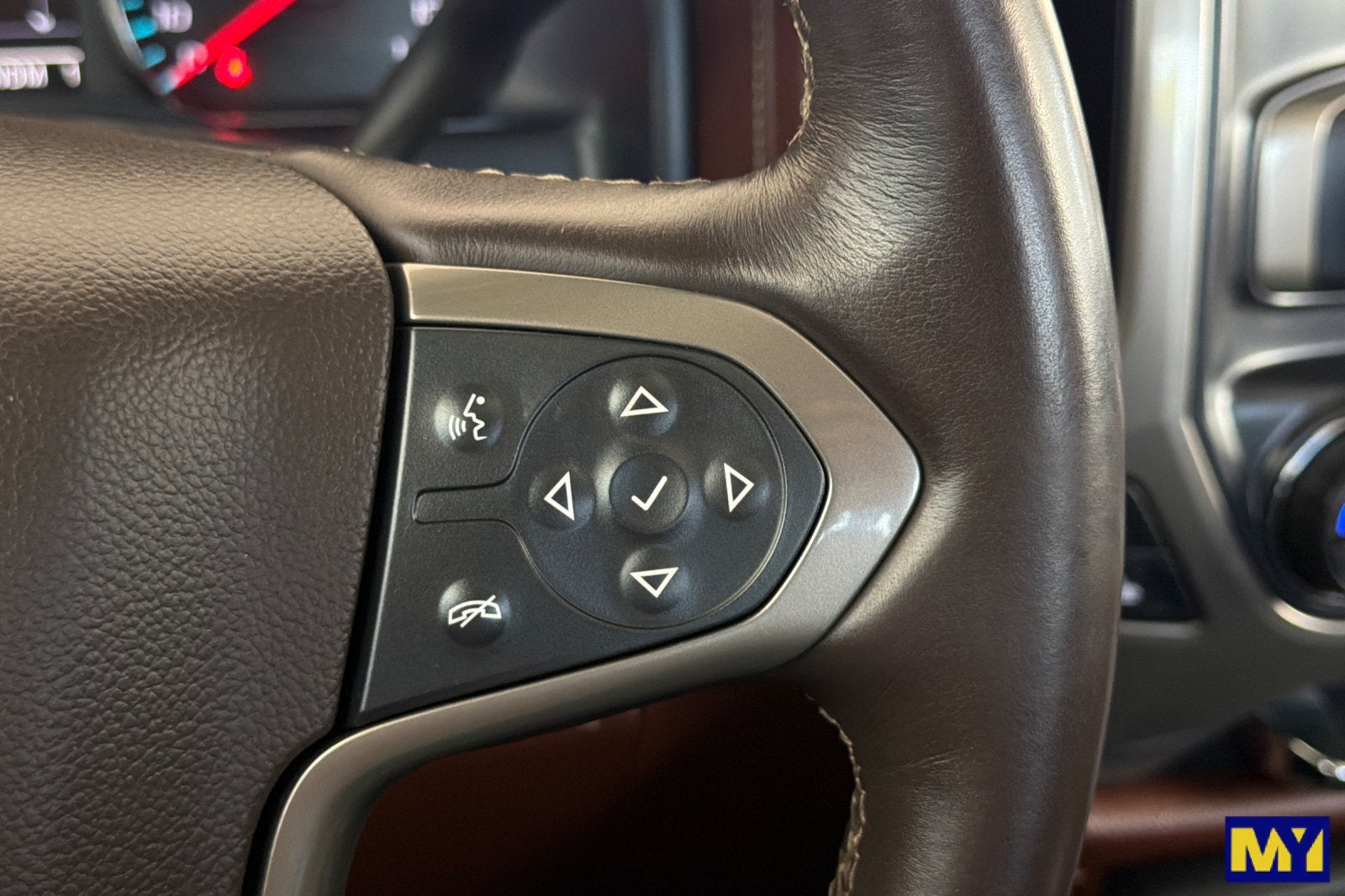

• Steering wheel audio controls
• Steering column, manual Tilt-Wheel and telescoping

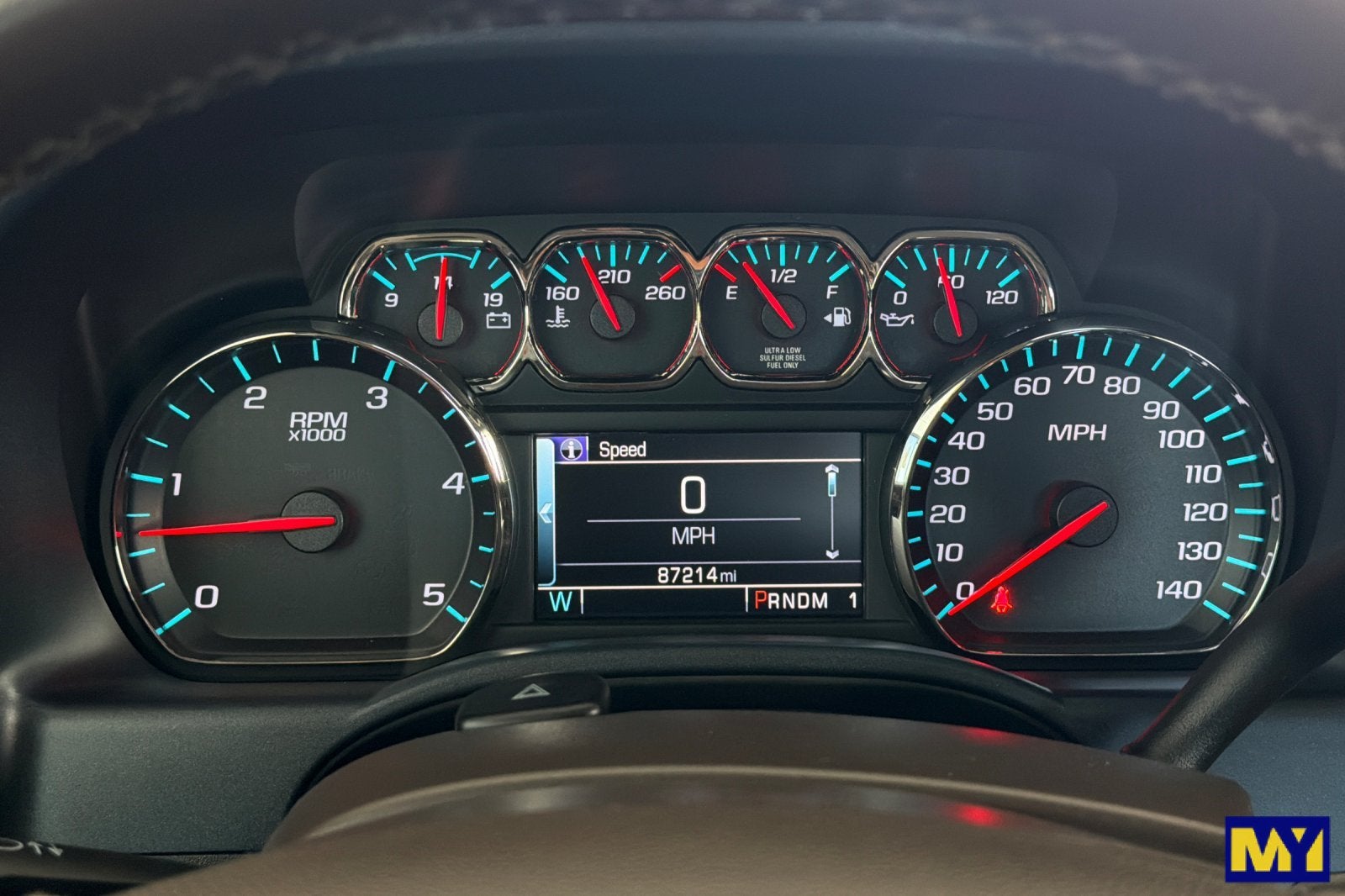

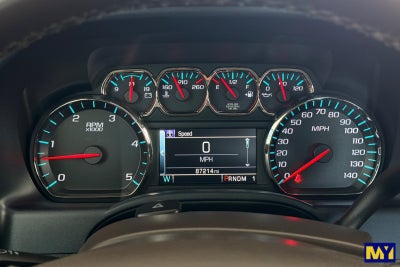

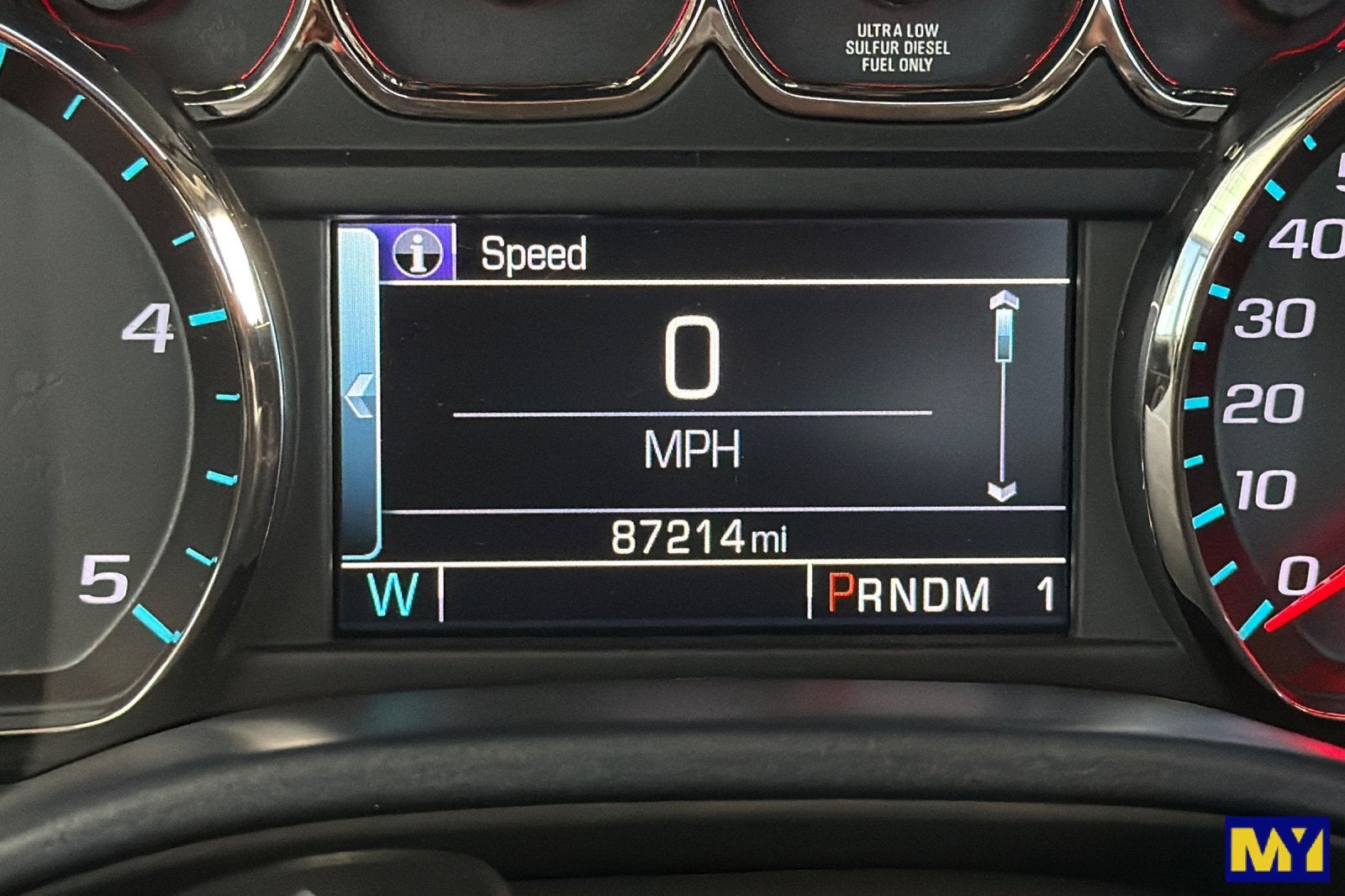

• Driver Information Center 4.2-inch diagonal color display, includes driver personalization, warning messages and vehicle information

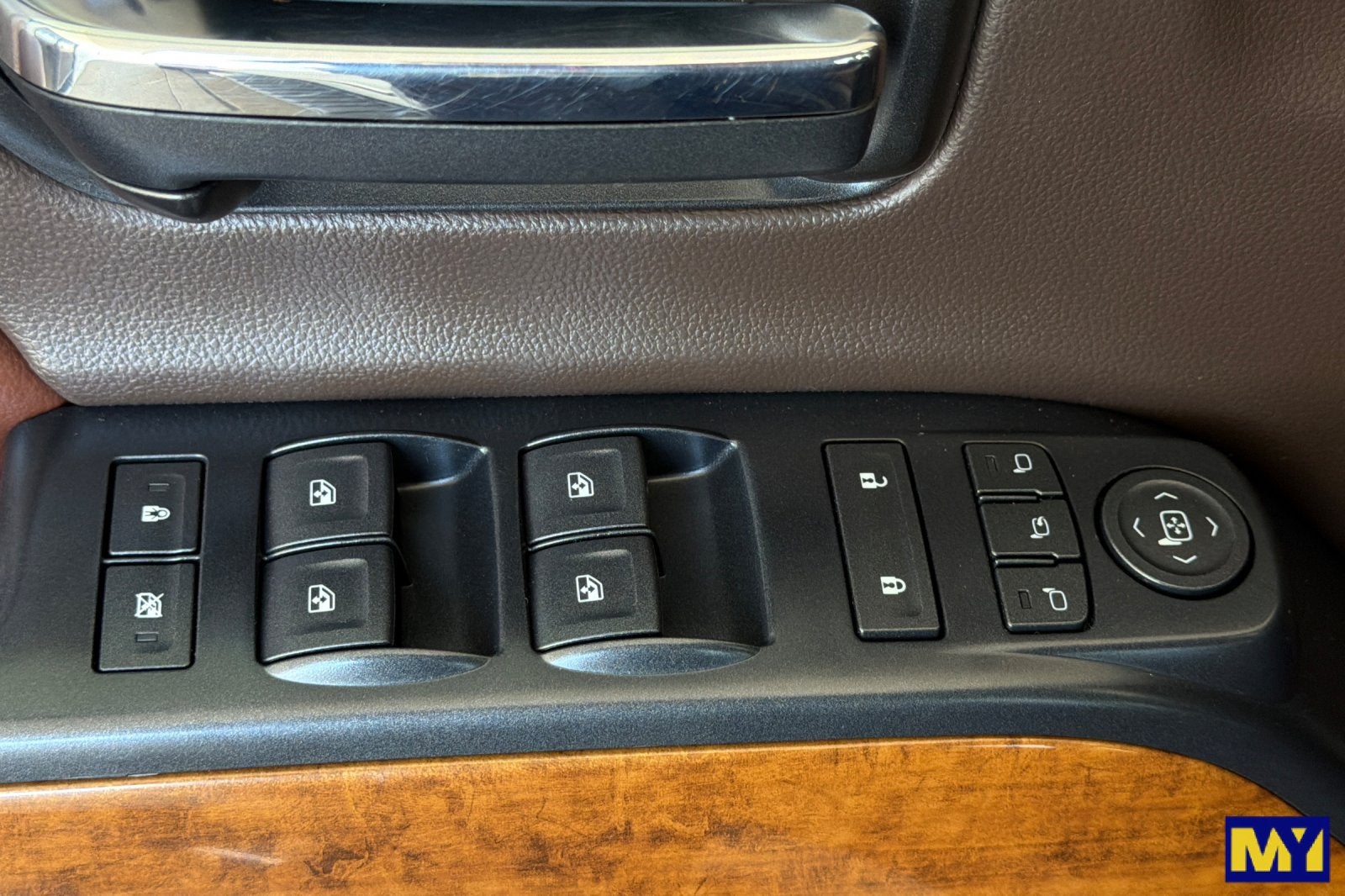

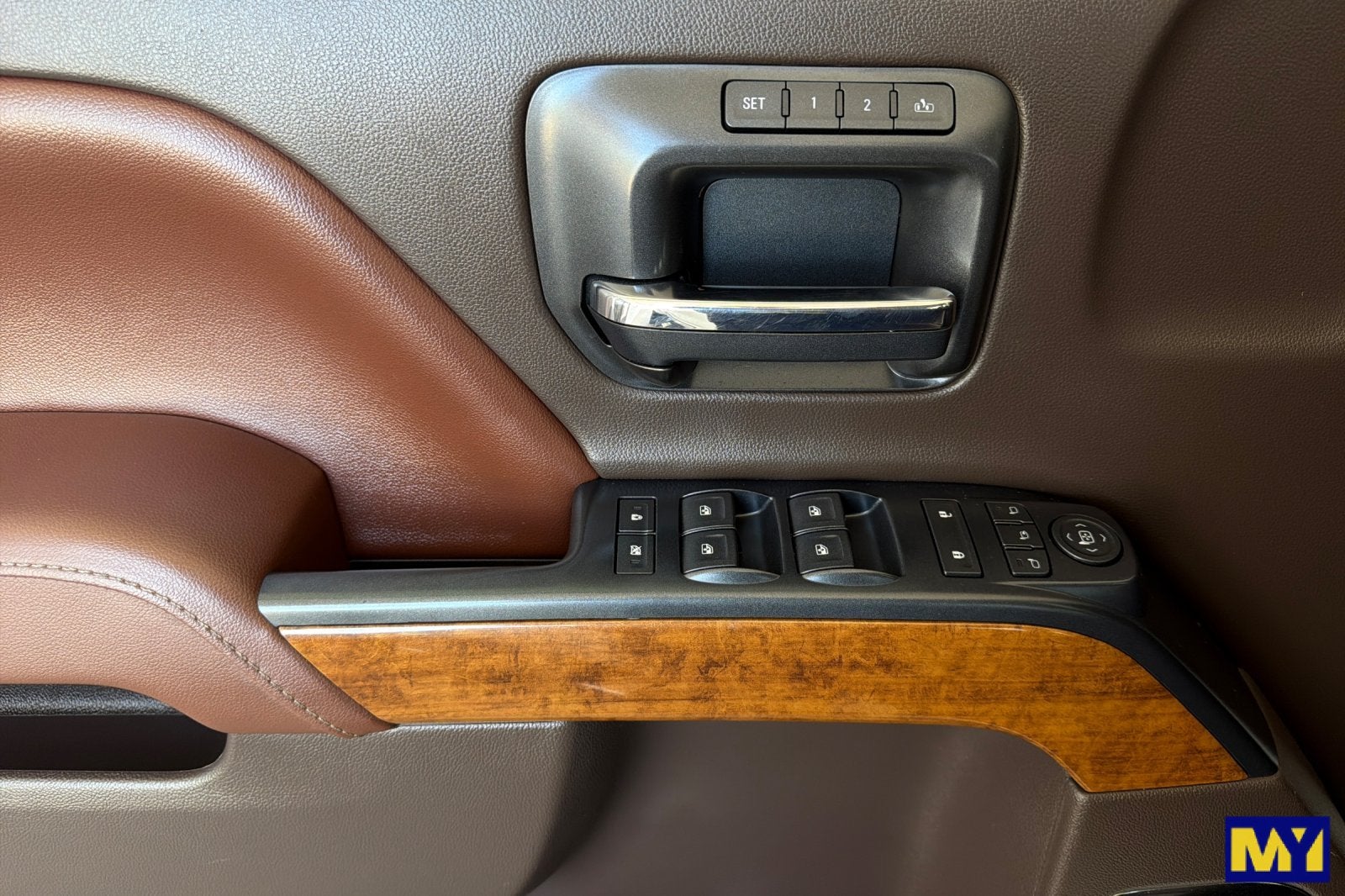

• Windows, power with driver express up and down and express down on all other windows
• Door locks, power
• Remote vehicle starter system
• Remote Keyless Entry
• Cruise control, steering wheel-mounted
• Universal Home Remote on Crew Cab or Double Cab models (Removed when (TRW) provisions for roof mounted lamp or (VYU) Snow Plow Prep Package is ordered.)
• Theft-deterrent system, unauthorized entry

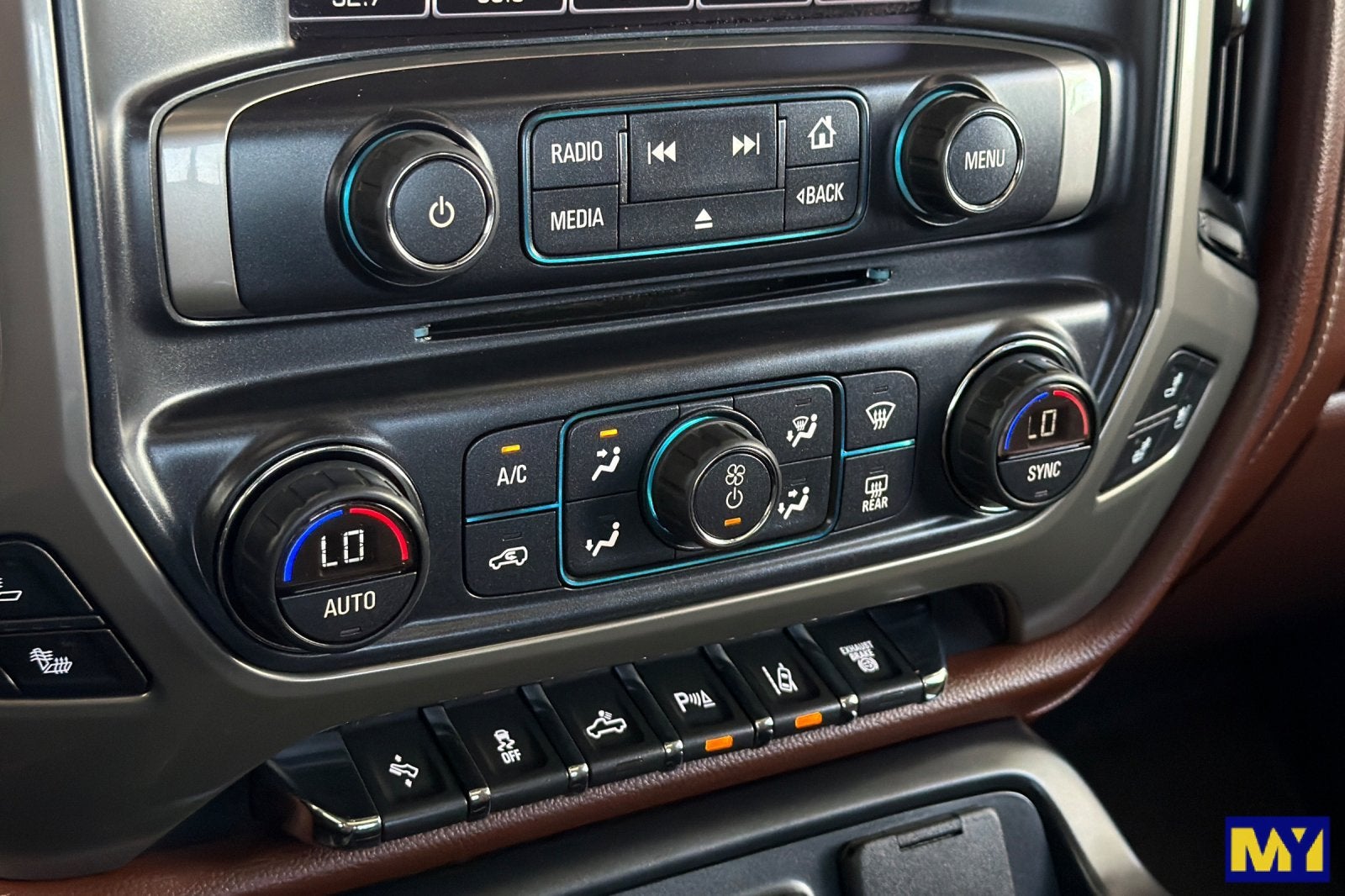

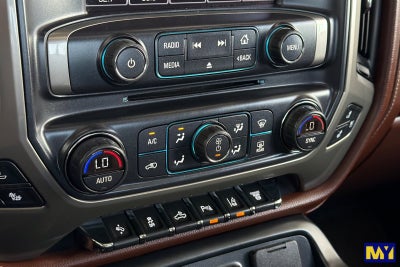

• Air conditioning, dual-zone automatic climate control. Only available on Crew Cab and Double Cab models.
• Defogger, rear-window electric
• Power outlet, 110-volt AC
• Mirror, inside rearview auto-dimming
• Visors, driver and front passenger illuminated vanity mirrors
• Assist handle, front passenger and driver on A-pillars

• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist
• Daytime Running Lamps with automatic exterior lamp control
• Air bags, single-stage frontal and thorax side-impact, driver and front passenger, and head curtain side-impact, front and rear outboard seating positions (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bags, frontal, driver and right front passenger, single stage (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• OnStar, Guidance Plan for 6 months including Automatic Crash Response, Stolen Vehicle Assistance, Roadside Assistance, Turn-by-Turn Navigation and more (trial excludes Hands-Free Calling) (Visit www.onstar.com for coverage map, details and system limitations. Services may vary by model and conditions.)
• Front and Rear Park Assist, Ultrasonic

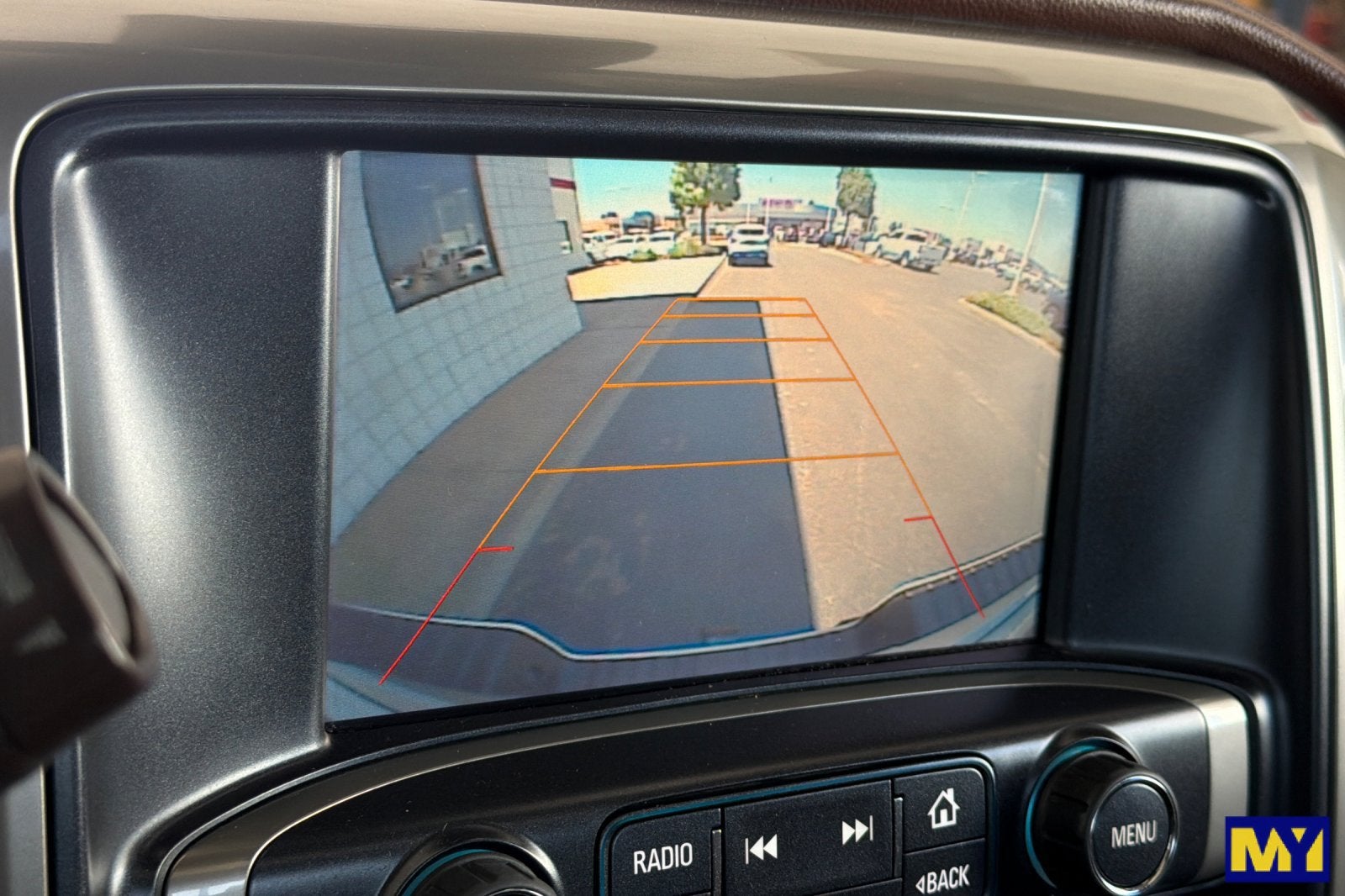

• Rear Vision Camera with dynamic guide lines (Removed when (ZW9) pickup box delete or (9J4) rear bumper delete is ordered.) (Removed when (ZW9) pickup box delete is ordered.)

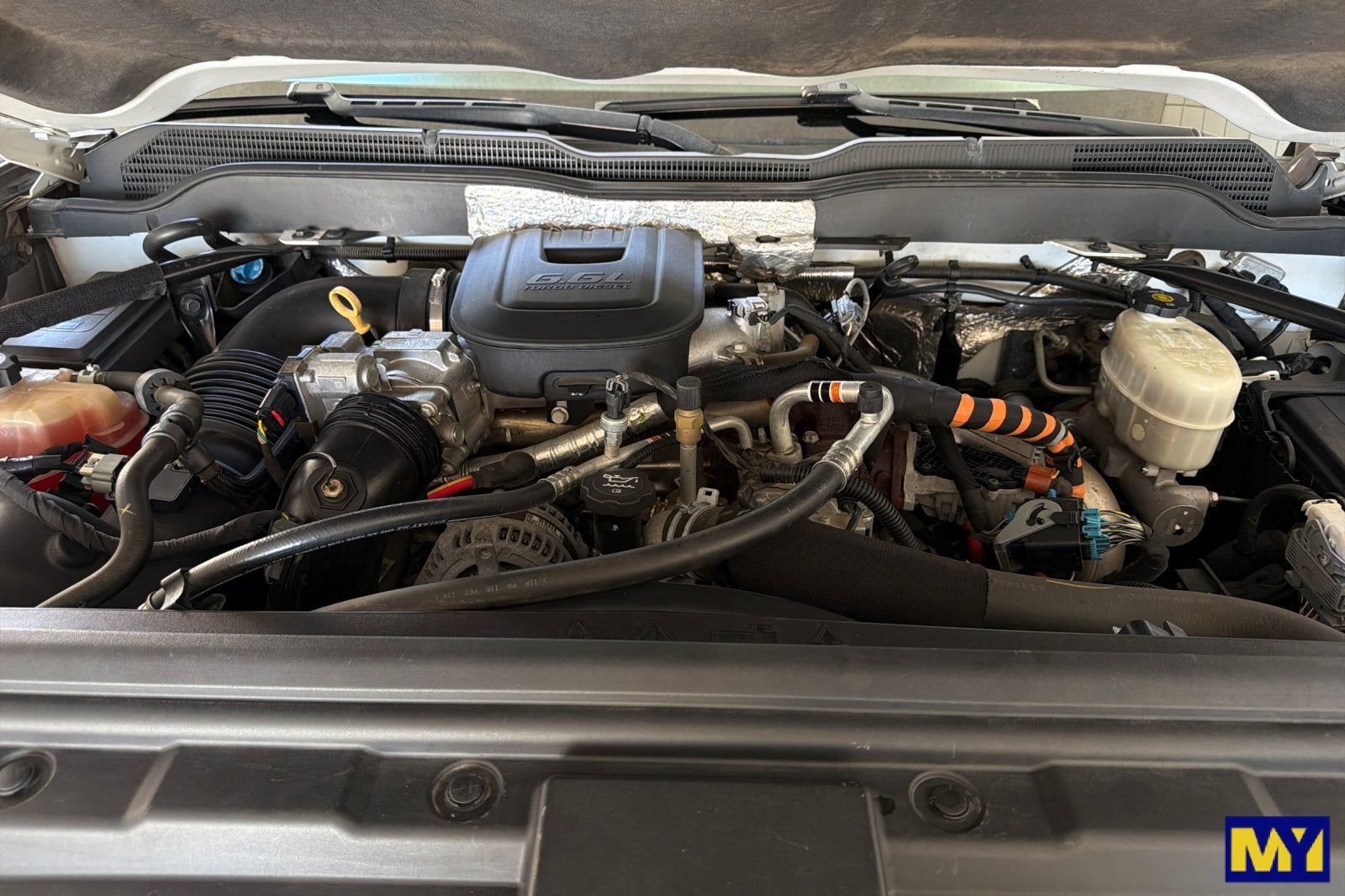

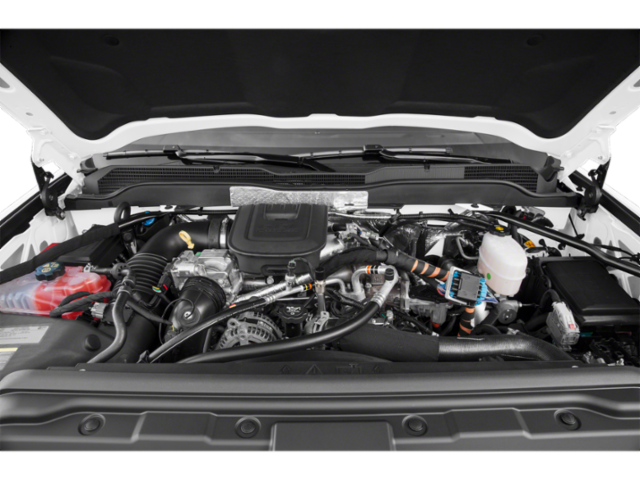

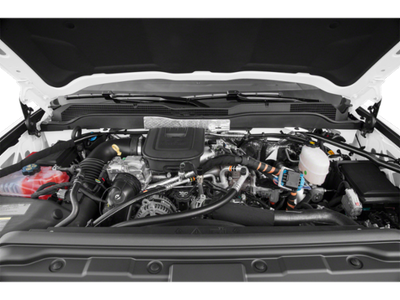

ENGINE, DURAMAX 6.6L TURBO DIESEL V8, B20-DIESEL COMPATIBLE

• (397 hp [296.0 kW] @ 3000 rpm
• 765 lb-ft of torque [1032.8 N-m] @ 1600 rpm) Includes (K40) exhaust brake and (K05) engine block heater.)

• Exhaust Brake
• 4.2 In. Instrument Cluster Screen Size
• 8 In. Infotainment Screen Size
• Height Passenger Seat Power Adjustments
• Height Driver Seat Power Adjustments
• Front Wireless Charging Station
• Power Locking Tailgate
• MyLink Infotainment
• Hotspot Wi-Fi
• With Read Function Electronic Messaging Assistance
• Touch Screen Display Radio
• Bluetooth® Auxiliary Audio Input
• Voice Operated Radio
• In Dash Rearview Monitor
• Low Battery Warnings And Reminders
• SiriusXM Satellite Radio
• Twin-tube Gas Front Shock Type
• Front Emergency Locking Retractors
• Trailer Brake Controller
• Towing Mirrors
• 7-pin Trailer Wiring
• IPod/iPhone Auxiliary Audio Input
• Trip Odometer
• Auto On/off Headlights
• 3-point Front Seatbelts
• 3-point Rear Seatbelts
• Diameter 33 Mm Front Stabilizer Bar
• Auto Delay Off Headlights
• Door Pockets Storage
• Chrome Window Trim
• Approach Lamps Exterior Entry Lights
• Front Seatback Storage
• Rear Parking Sensors
• 115V Front Power Outlet(s)
• Cruise Control Steering Wheel Mounted Controls
• Chrome Door Sill Trim
• Range Fuel Economy Display
• MPG Fuel Economy Display
• HD Radio Radio
• Memory Card Slot Auxiliary Audio Input
• USB Auxiliary Audio Input
• Jack Auxiliary Audio Input
• Auto-dimming Rearview Mirror
• Perforated Upholstery Accents
• 4-pin Trailer Wiring
• Chrome Running Board Color
• Short And Long Arm Front Suspension Type
• Front Console With Armrest And Storage Center Console
• Polished Aluminum Alloy Wheels
• Maintenance-free Battery
• Chrome Body Side Moldings
• Power Folding Side Mirror Adjustments
• Oil Pressure Gauge
• Body-color Rear Bumper Color
• 150 Amps Alternator
• Lift Assist Tailgate
• Auxiliary Oil Cooler
• Remote Engine Start
• Reclining Driver Seat Power Adjustments
• Stainless Steel Exhaust Tip Color
• Removable Tailgate
• Reclining Passenger Seat Power Adjustments
• Air Filtration
• Auxiliary Transmission Fluid Cooler
• Chrome Surround Grille Color
• Carpet Floor Material
• Folds Up Rear Seat Folding
• Rear Assist Handle
• Heated Side Mirrors
• Lumbar Passenger Seat Power Adjustments
• Lumbar Driver Seat Power Adjustments
• Front Floor Mats
• Twin-tube Gas Rear Shock Type
• Adjustable Front Headrests
• Front Seatbelt Warning Sensor
• Two 12V Front Power Outlet(s)
• Full-size Spare Tire Size
• Power Side Mirror Adjustments
• Dual Illuminating Vanity Mirrors
• Roll Stability Control
• Chrome Grille Color
• Heavy Duty Battery
• Voice Operated Navigation System
• Trailer Hitch
• Multi-function Display
• Rear Floor Mats
• Battery Saver
• Rearview Camera System
• Ventilated Passenger Seat
• Speed Sensitive Volume Control
• LED Taillights
• Power Brakes
• Digital Odometer
• Touch Screen Display Navigation System
• Leather-trimmed Upholstery
• Integrated Turn Signals Side Mirrors
• Hill Holder Control
• Running Boards
• Side Mirrors Memorized Settings
• Garage Door Opener Universal Remote Transmitter
• Driver Seat Memorized Settings
• Low Fuel Level Warnings And Reminders
• Adjustable Rear Headrests
• Tie-down Anchors Pickup Bed Cargo Management
• Audio Steering Wheel Mounted Controls
• Spray-on Pickup Bed Liner
• Chrome Mirror Color
• Chrome Door Handle Color
• Body-color Front Bumper Color
• Lockout Button Power Windows
• Radio Data System
• Power Pickup Sliding Rear Window
• Pickup Bed Light
• Multi-leaf Rear Suspension Type
• 4-wheel ABS
• Tow/Haul Mode
• Compass
• Maintenance Due Warnings And Reminders
• Panic Alarm Multi-function Remote
• Power Door Locks
• Keyless Entry Multi-function Remote
• Tinted Glass
• Electronic Brakeforce Distribution
• Vehicle Immobilizer Anti-theft System
• LATCH System Child Seat Anchors
• Child Safety Door Locks
• Variable Intermittent Front Wipers
• Front Fog Lights
• Power Windows
• Power Steering
• Cruise Control
• Alarm Anti-theft System
• Tachometer Gauge
• Rear Window Defogger
• Traction Control
• Stability Control
• Front Side Curtain Airbags
• Braking Assist
• Dual Front Airbags
• Rear Locking Differential
• Dual Rear Wheels
• Rear Step Bumper Detail
• Trailer Stability Control
• Roof-mounted Lights
• Manual Telescoping Side Mirror Adjustments
• Front Assist Handle
• Clock
• 60-40 Split Bench Rear Seat Type
• AM/FM Radio
• Leather Steering Wheel Trim
• 6 Total Speakers
• Ventilated Disc Front Brake Type
• Bucket Front Seat Type
• Front Reading Lights
• 12 Passenger Seat Power Adjustments
• Steel Spare Wheel Type
• Underbody Spare Tire Mount Location
• 2 Front Headrests
• Voice Operated Hands-free Phone Call Integration
• 1 Subwoofer
• MP3 Playback In-Dash CD
• Bluetooth® Wireless Data Link
• Torsion Bars Front Spring Type
• Front Tow Hooks
• 4 One-touch Windows
• Single Disc In-Dash CD
• 2 Rear Headrests
• Front Seatbelt Pretensioners
• OnStar Satellite Communications
• 12 Driver Seat Power Adjustments
• Leaf Rear Spring Type
• Dual Front Air Conditioning Zones
• 720 CCA Battery Rating
• Heated Driver Seat
• Mast Antenna Type
• Diversity Antenna Type
• Front Parking Sensors
• Halogen Headlights
• Rear Side Curtain Airbags
• Heated Passenger Seat
• Electronic Hi-lo 4WD Selector
• Automatic Climate Control Front Air Conditioning
• Solid Live Axle Rear Suspension Classification
• Tilt And Telescopic Steering Wheel
• Front Side Airbags
• Ventilated Driver Seat
• Part Time 4WD Type
• 2 Driver Memorized Settings
• Daytime Running Lights
• Carpet Floor Mat Material
• Bose Premium Brand
• Front Cupholders
• Independent Front Suspension Classification
• Ventilated Disc Rear Brake Type
• Occupant Sensing Passenger Airbag Deactivation
• Duramax Plus Package
• Heated Steering Wheel
• Console Insert Organizer Tray
• Driver Alert Package
• Power Adjustable Pedals
• Front License Plate Bracket

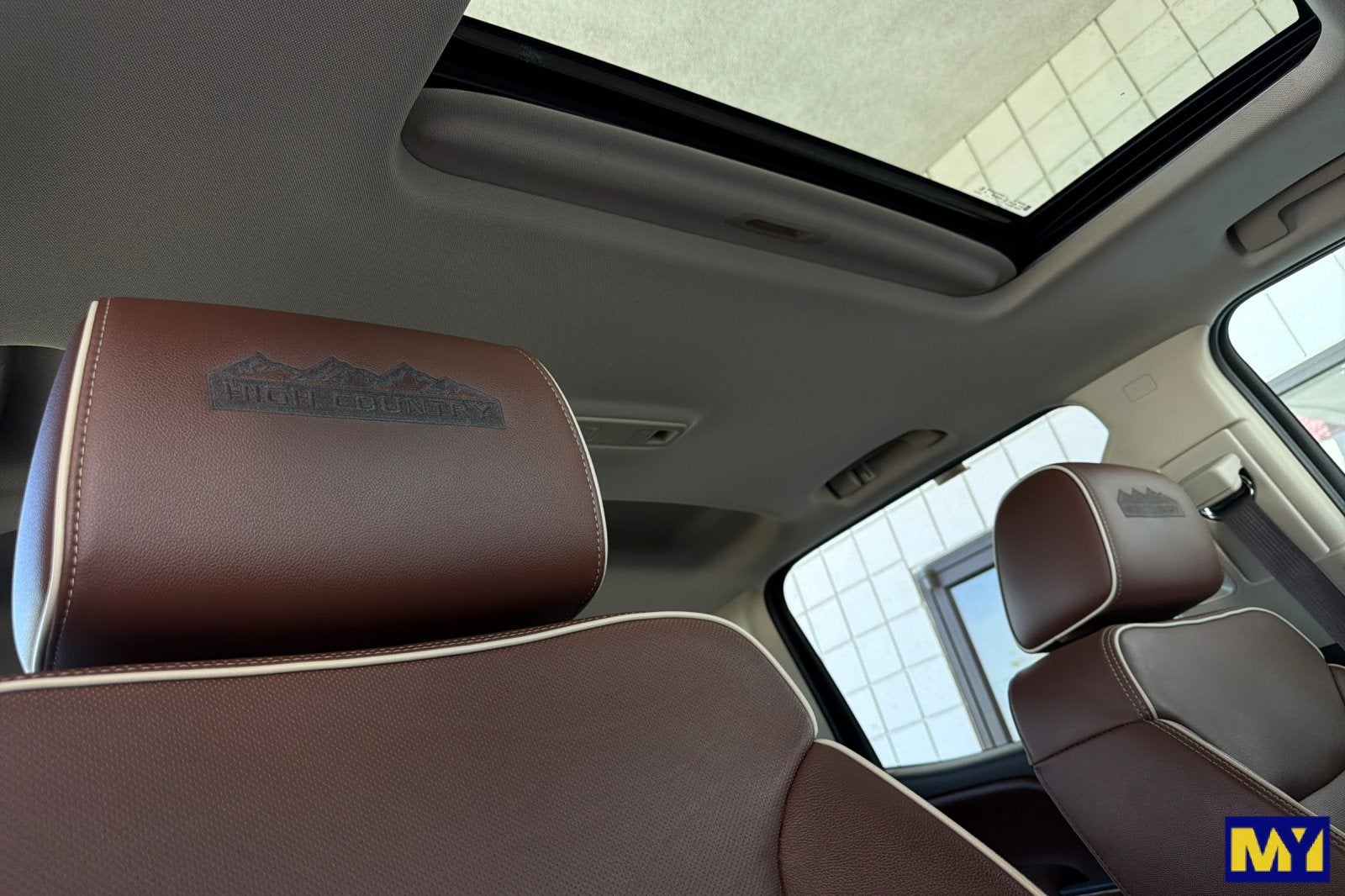

• Power Sunroof
• California Emissions Requirements
• 3.73 Rear Axle Ratio
• Engine Block Heater

• Electrical
• Cold Cranking Amps @ 0° F (Primary): - TBD -
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5600
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 7050
• Curb Weight - Front (lbs): - TBD -
• Curb Weight - Rear (lbs): - TBD -
• Gross Vehicle Weight Rating Cap (lbs): 11000
• Gross Combined Wt Rating (lbs): 24500
• Gross Combined Wt Rating (lbs): 20500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 16900
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 13700
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1690
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1370
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 16900
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 13700
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 4225
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3425
• Maximum Trailering Capacity (lbs): 22600
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 5600
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 7050
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 5600
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 7050
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 51.00
• Shock Absorber Diameter - Rear (mm): 51.00
• Stabilizer Bar Diameter - Front (in): 1.31
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): - TBD -
• Rear Brake Rotor Diam x Thickness (in): - TBD -
• Tires
• Front Tire Order Code: QWF
• Rear Tire Order Code: QWF
• Front Tire Size: LT265/70R18E
• Rear Tire Size: LT265/70R18E
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 18 x 8.0
• Rear Wheel Size (in): 18 x 8.0
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Steering
• Steering Type: Pwr Recirculating Ball
• Steering Ratio (:1), On Center: 16.00
• Steering Ratio (:1), At Lock: N/A
• Turning Diameter - Curb to Curb (ft): 56.1
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36.0
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 167.70
• Length, Overall w/o rear bumper (in): 258.4
• Width, Max w/o mirrors (in): 80.51
• Height, Overall (in): 78.07
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 151.10
• Cab to Axle (in): 55.24
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 39.41
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): 8.53
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 97.76
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 51.02
• Cargo Box (Area) Height (in): 21.22
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 76.3
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 42.80
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 64.84
• Front Hip Room (in): 60.73
• Second Head Room (in): 40.50
• Second Leg Room (in): 40.93
• Second Shoulder Room (in): 64.33
• Second Hip Room (in): 60.24
• Summary
• Vehicle Name: Chevrolet Silverado 3500HD
• Body Style: Crew Cab Pickup
• Body Code: E63
